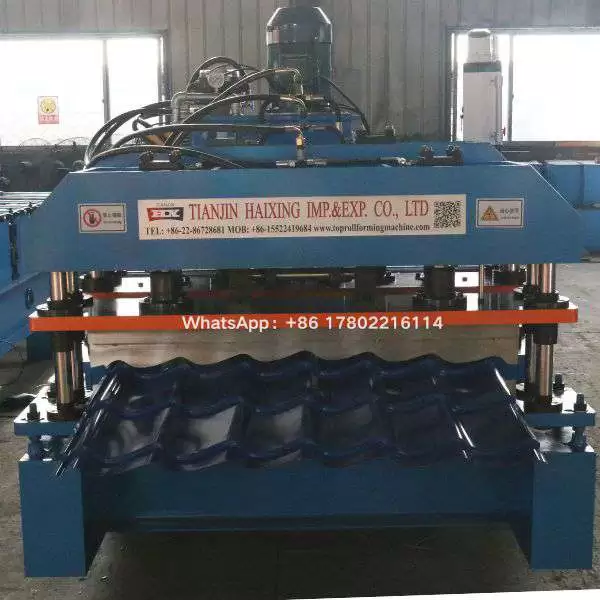

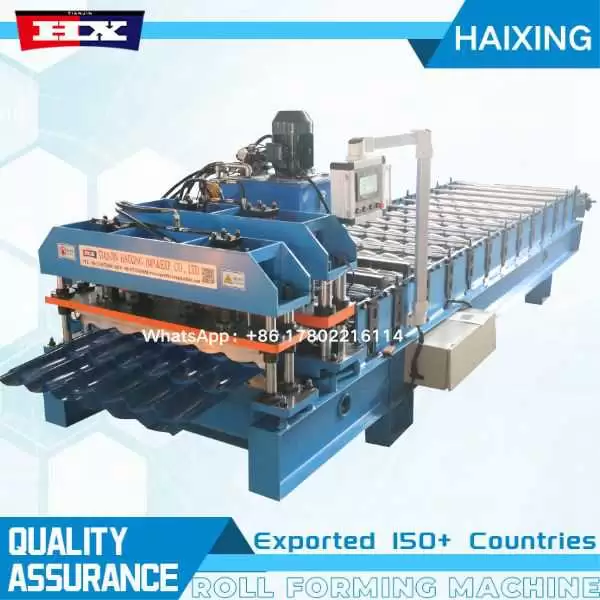

Glazed Tile Roll Forming Machine
High-Precision Glazed Tile Roll Forming Machines for Premium Architectural Roof Cladding
As a global pioneer in advanced cold roll forming automation, we engineer industrial-grade glazed tile roll forming machines engineered to produce flawless, elegant step-tile metal panels for high-end residential villas, commercial pavilions, and historical replica roofing. Whether your facility requires an automated glazed sheet roll forming machine for high-tensile color steel or a customized glazed tile making machine to match localized step profiles (such as European Milano, Spanish Monterrey, or traditional Asian bamboo tile wave designs), our manufacturing lines deliver unparalleled structural precision and aesthetic perfection.
Unlike standard continuous wavy profiles, glazed metal tiles require an integrated, heavy-duty hydraulic stamping unit to form the distinct "steps" or "crests" that mimic premium clay tiles. Our advanced glazed tile making machines are optimized to process pre-painted galvanized steel (PPGI), PPGL, and aluminum coils with thicknesses from 0.3mm to 0.8mm, ensuring sharp step angles, straight alignment, and absolute geometric uniformity over long production runs.
-
Mirror-Polished Anti-Scratching Rollers: To protect high-gloss or matte PPGI coatings, every roller is CNC-machined from premium GCr15/Cr12MoV steel, vacuum-quenched to HRC58-62, and finished with thick hard chrome plating (>0.05mm) followed by meticulous mirror polishing.
-
Heavy-Duty Monolithic Base: Built upon an ultra-rigid welded H-beam steel structural chassis that absorbs harmonic energy, completely eliminating step displacement and vibration during rapid hydraulic stamping sequences.
-
Servo-Driven Step Precision: Integrated with Siemens/Mitsubishi PLC control groups and high-sensitivity encoder systems, allowing operators to micro-adjust step lengths (from 150mm to 400mm) and depth with a tolerance restricted within 0.5mm.
