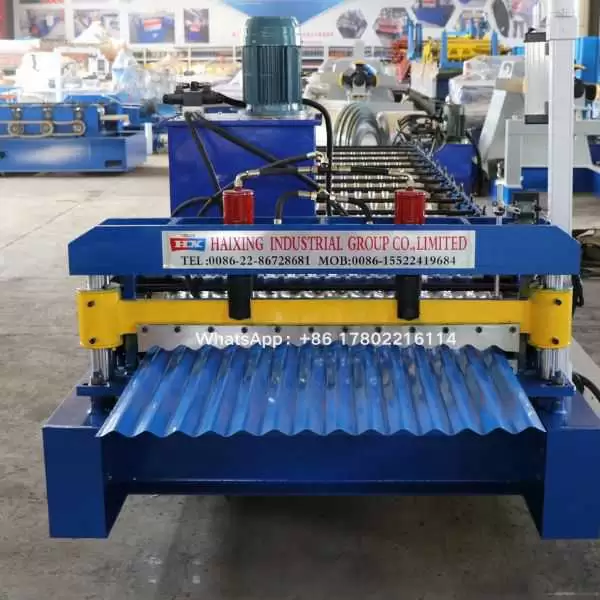

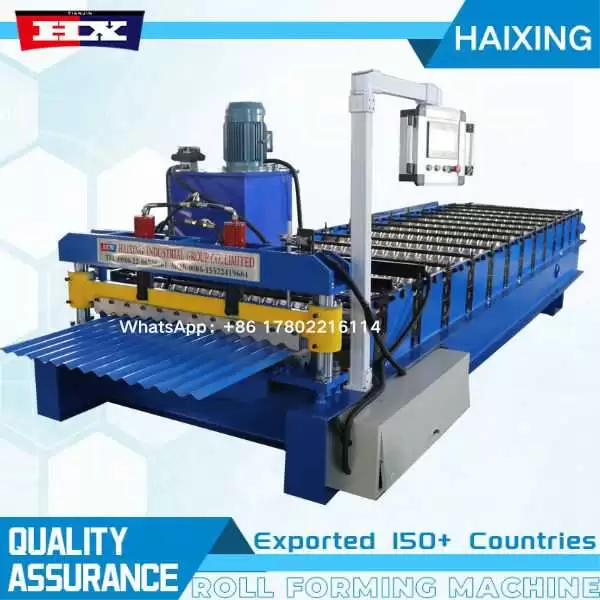

Corrugated Roll Machine

High-Precision Corrugated Sheet Rolling Machines for Traditional & Industrial Metal Roofing

As a premier pioneer in cold roll forming technology, we engineer industrial-grade corrugated roll machines designed to produce flawless sinusoidal wave profiles for global residential, agricultural, and industrial enclosures. Whether you are searching for a heavy-duty corrugated sheet rolling machine for high-tensile steel or an automated corrugated metal roofing machine for localized color-coated profiles, our production lines offer industry-leading throughput, structural rigidity, and profiling accuracy.

The traditional wave profile (commonly known as the Sine Wave, Wave 18/76, or Circular Corrugation) remains the most popular roofing choice globally due to its excellent strength-to-weight ratio and ease of installation. Our corrugating roll machines are optimized to process PPGI, PPGL, Galvanized Steel (GI), and Aluminum coils with a thickness range of 0.13mm to 0.6mm (and heavy-duty options up to 0.8mm), maintaining perfect wave symmetry and depth across the entire panel length.

• Flawless Surface Protection: Every corrugating roll undergoes precision CNC turning, heat treatment, mirror polishing, and hard chrome plating ($>0.05\text{mm}$) to guarantee zero paint scratching or micro-cracking on delicate PPGI coatings.

• Massive Structural Backbone: Built upon a heavy-duty welded H-beam steel basement or individual cast-iron wall frames (up to 42-ton frame structural integrity), completely eliminating mechanical vibration during high-speed runs.

• Next-Gen Automation: Fully integrated with Siemens/Mitsubishi PLC control groups and hydraulic cutting tools, providing continuous non-stop flying shear capabilities with length tolerances restricted within $\le \pm1\text{mm}$ at speeds up to 30-40 m/min.

Technical FAQ: Mastering Corrugated Metal Sheet Production

Q1: How does a corrugated roll machine handle ultra-thin materials (e.g., 0.14mm) without wrinkling?

A: Rolling ultra-thin, high-tensile steel coils (such as G550 hard material popular in African markets) without creating center waves or wrinkles requires immense technical expertise. Our corrugated sheet rolling machine solves this by using a calculated multi-stage forming process (usually 16 to 22 forming stations) with custom-engineered rollers. We incorporate precision side-roller guides and fine-tunable archway clearance adjustments, allowing operators to micro-manage the forming pressure based on the exact material thickness and yield strength.

Q2: Why is the chrome plating thickness of the corrugating roll crucial for PPGI sheets?

A: When running color-coated steel (PPGI), any minor friction between the coil and the roller will scratch the protective paint, leading to premature rusting. The rollers on our corrugated metal roofing machine are forged from premium GCr15 steel, vacuum-quenched to HRC58-62, and then coated with heavy hard chrome plating ($\ge 0.05\text{mm}$) before being mirror-polished. This ultra-smooth, high-hardness surface guarantees zero friction-scratching and significantly extends the service life of the tooling.

Q3: What are the layout advantages of choosing a Cast Iron Wallboard frame over a standard Column frame?

A: For buyers looking for long-term precision, we offer heavy-duty independent cast iron wallboard (torii/Archway) frames. Compared to standard economic structural steel frames, solid cast iron absorbs micro-vibrations significantly better and maintains absolute axial alignment over decades of continuous operation. This ensures that the deep sine-waves remain perfectly uniform, preventing overlap assembly issues at the construction site.

Q4: How do you support overseas customers regarding language localization and remote diagnostics?

A: Every corrugated metal roofing machine we ship comes with an automation package tailored for international factories. The Siemens or Mitsubishi touch-screen PLC is pre-configured in your local language (such as English, LATAM Spanish, French, or Portuguese). Furthermore, our control cabinets can be equipped with a global Wi-Fi/4G remote diagnostic module. If your operator encounters a configuration problem, our senior engineers in China can securely log into your machine's PLC online to update software or troubleshoot parameters instantly.
