Three Layer Roll Forming Machine

Ultimate Space-Saving Three Layer Roll Forming Machines for 3-in-1 Metal Profile Production

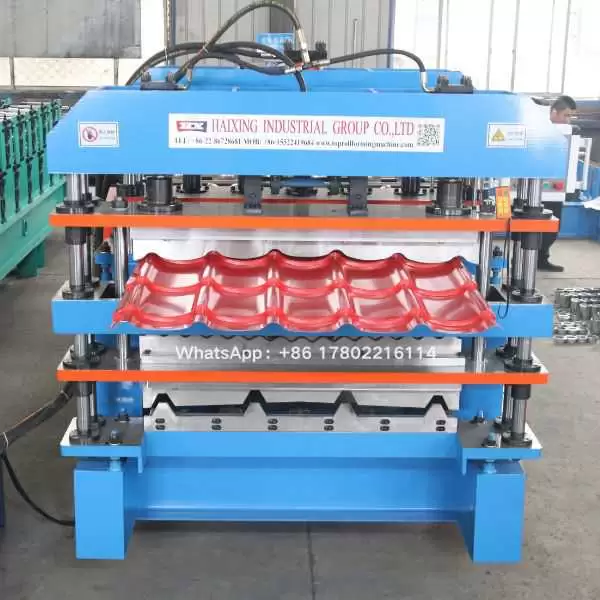

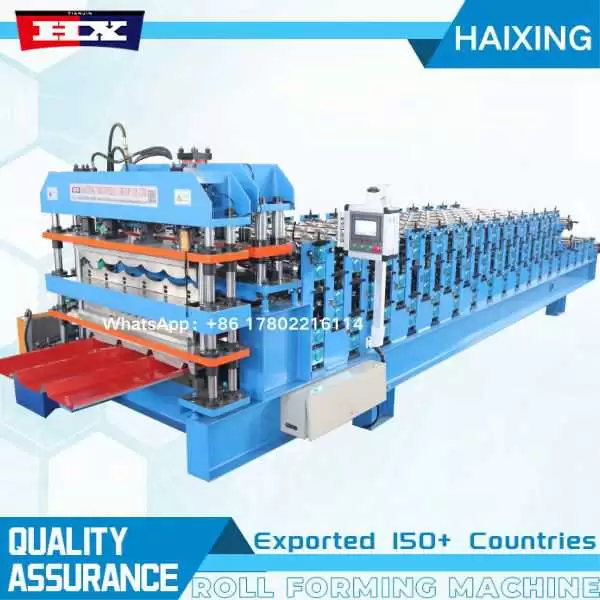

As an industry-leading pioneer in advanced heavy-duty cold roll forming automation, we engineer industrial-grade three layer roll forming machines (also known as triple-deck or 3-in-1 roll formers) designed to offer the absolute pinnacle of workshop space optimization and capital investment efficiency. A three layer roll forming machine integrates three completely independent profiling levels into a single, synchronized heavy-duty machine chassis, sharing one centralized main motor drive, one high-pressure hydraulic station, and one intelligent PLC automation group. This breakthrough design allows roofing and steel profiling factories to produce three distinct high-demand profiles—such as Corrugated waves, Trapezoidal cladding (TR4/IBR), and Glazed step tiles or Light steel framing tracks—on a single machinery footprint.

Our triple-level manufacturing lines are engineered to process high-tensile materials, including PPGI, PPGL, Galvanized Steel (GI), and Aluzinc coils, with thicknesses ranging from 0.14mm to 0.8mm. By applying meticulous engineering to the machine’s vertical center of gravity and roller distribution, our lines guarantee zero harmonic interference between the three decks, ensuring flawless panel geometry whether you are running the top, middle, or bottom layer.

• 300% Workshop Efficiency: Maximizes production capabilities by delivering three distinct profiles while reducing required factory floor space by up to 65% compared to three separate single production lines.

• Heavy-Duty 42-Ton Monolithic Chassis: Fabricated from ultra-rigid, welded H-beam steel with solid independent vertical sidewalls to completely absorb the kinetic energy and micro-vibrations generated during high-speed runs.

• Triple-Deck Intelligent Drive: Features an advanced manual or pneumatic multi-stage clutch system integrated with a Siemens or Mitsubishi PLC micro-computer, allowing operators to safely redirect mechanical power to any selected deck within 60 seconds.

Technical FAQ: Mastering Production with Triple-Deck Roll Formers

Q1: Can a three layer roll forming machine produce three profiles simultaneously? A: No. To achieve maximum space saving and cost efficiency, a three layer roll forming machine is engineered to utilize a shared main motor, drive shafting, and hydraulic power package. Therefore, only one profiling level can run at any given time. Operators use a rapid-action mechanical clutch or pneumatic selector to direct rotational power to the top, middle, or bottom deck. This design is highly optimized for batch-production factories that switch profiles based on changing daily order schedules.

Q2: How do operators feed steel coils into the upper layers of a triple-deck machine?

A: Due to the physical height of a three layer roll forming machine, the entry point for the top and middle decks is higher than a standard single machine. To ensure safe and efficient operation, we provide custom-built, heavy-duty adjustable feeding guide ramps. For fully automated setups, we can integrate our specialized multi-level hydraulic uncoilers (decoilers) or a hydraulic lifting car that smoothly raises and aligns the steel coil with the precise feeding center line of the selected layer.

Q3: Why are independent hydraulic cutters crucial for a triple-deck machine instead of a single shared shear?

A: Cheaply manufactured triple-deck machines often try to use a single shared cutter frame to cut costs, which forces operators to manually change blade molds every time they switch layers—costing hours of downtime. Our premium lines feature three completely independent hydraulic post-cutters (one for each layer). Each cutter is custom wire-cut from premium Cr12MoV (D2 grade) steel with vacuum quenching to HRC60-62. This allows instant profile switching from the PLC touchscreen and guarantees clean, zero-burr cuts without profile deformation.
