double layer machine
double layer machine

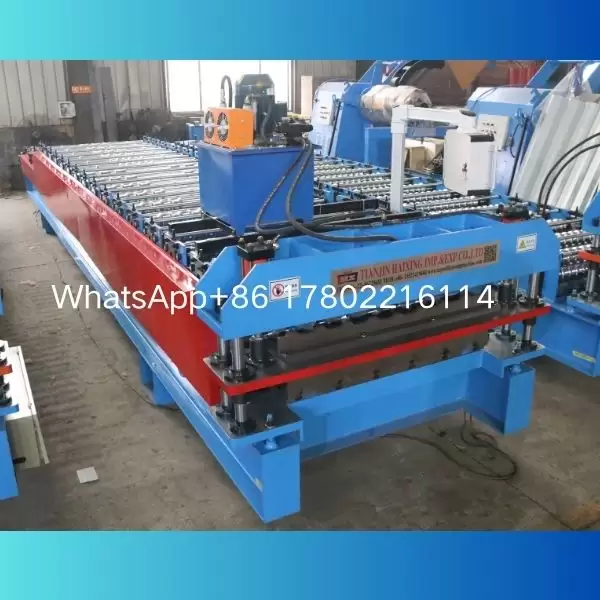

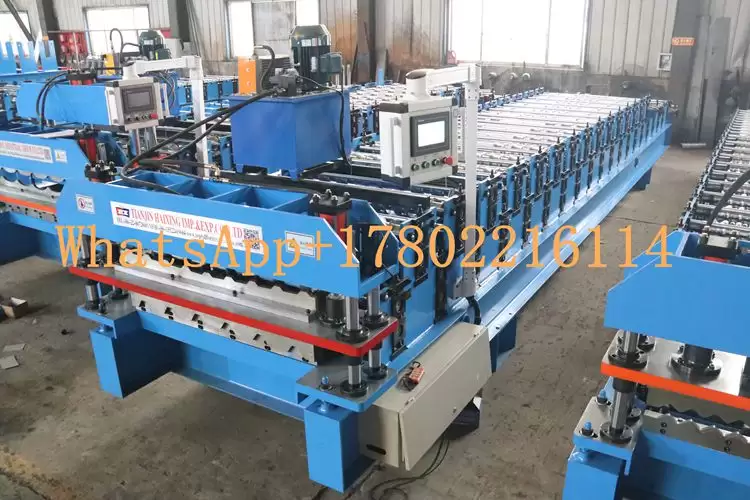

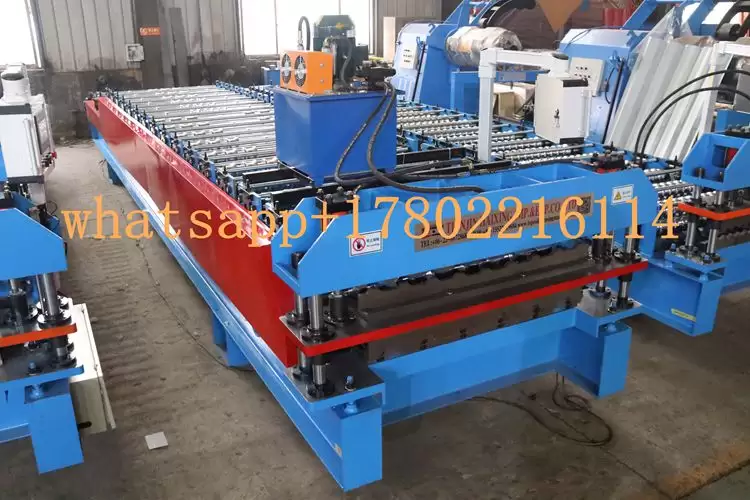

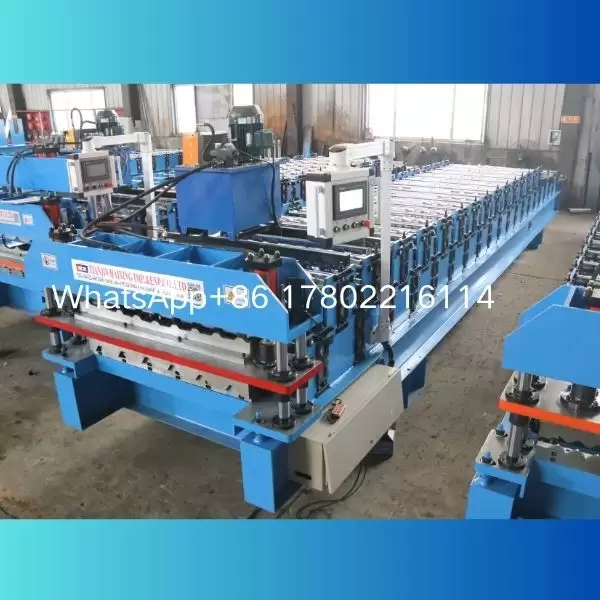

The double layer machine is an ideal solution for customers seeking versatility and efficiency in roof sheet production. With the ability to produce two different roofing sheet profiles in a single machine, it saves both space and investment cost while maintaining premium output quality. Built with strong structure, PLC control, and easy operation, this equipment ensures consistent accuracy, durability, and high-speed performance—making it a trusted choice for modern construction needs worldwide.
double layer Machine Details
double layer machine
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.3-0.8mm |
| Width | 1220mm(customized) |
| Decoiler | Manual decoiler(will give you as free) |

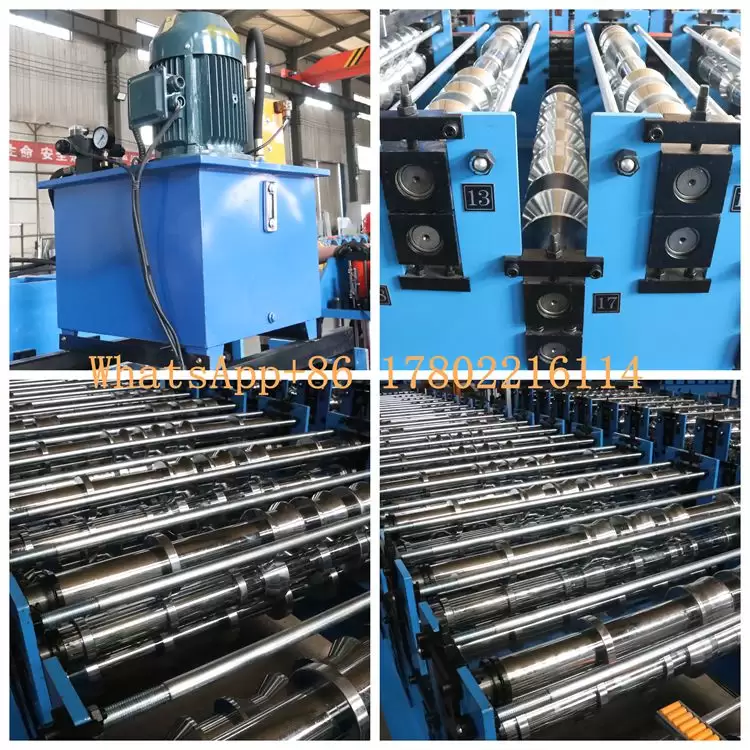

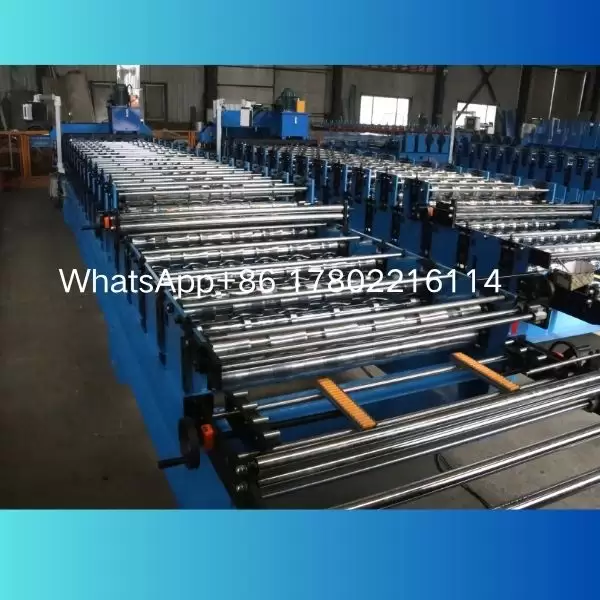

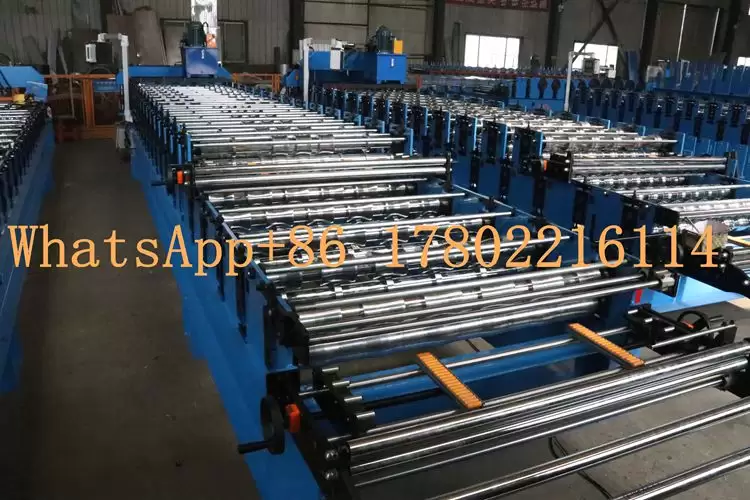

| Roller station | 15+15 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 5.5+5.5KW |
| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V 50Hz 3Phase (As your requirement) |
| Forming Speed | 10-15 m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Why Choose Us
Over 28 Years of Industry Experience and 1,200+ Installations Worldwide
CE and ISO Certified for Quality and Safety Compliance
Warranty Extension Available for Up to 18 Months
Expert On-Site Setup and Training Services Provided
About Us
Haixing Tianjin is a leading provider of advanced cold forming solutions, focused on delivering high-precision equipment for roofing and construction industries. Backed by over 28 years of experience, we have earned the trust of customers in more than 150 countries with our durable and efficient roll forming machines. As a CE and ISO-certified manufacturer, we combine strong Chinese engineering capabilities with global standards to ensure consistent quality and performance across all markets.
FAQ:
Q: What types of roof panel forming machines do you mainly produce?
A: We focus on metal roof panel roll forming machines, including vertical lock seam panels, corner panels, corrugated panels, antique glazed tiles and other 20+ types of equipment, supporting customized molds.
Q: What raw materials are suitable for the machine? Thickness range?
A: Mainly processed galvanized sheets, color-coated sheets, aluminum alloy sheets, material thickness can usually be adjusted according to demand.
Q: What is the production speed of the equipment?
A: The standard model speed is 10-15 meters/minute, and the high-end model can reach 20 meters/minute, depending on the complexity of the pattern.
Q: Can you provide a trial video or sample?
A: We can provide real-time trial videos and molded samples for delivery. If you need on-site inspection, please make an appointment to visit the factory.
Q: Is the equipment fully automatic or semi-automatic? How many people are needed to operate it?
A: Standard PLC fully automatic control system, only 1-2 people are needed to operate (feeding + monitoring), and high-end models can be connected to automatic feeding racks.
Q: What is the material of the mold? What is the service life?
A: The mold is made of Cr12MOV mold steel, surface quenching treatment, and the service life can reach more than 500,000 extended meters under normal use, and it supports renovation and maintenance.
Q: Does it support customized version? How long is the mold development cycle?
A: Support customized version according to drawings, the mold development cycle is about 20-30 days (need to confirm the complexity of the drawings), and a 3D design plan can be provided first.
Q: Can the equipment voltage and frequency adapt to our country?
A: Support global voltage customization (220V/380V/415V, 50Hz/60Hz), and will be debugged according to the customer's national standards before leaving the factory.
