corrugated roll forming machine1032
corrugated roll forming machine1032

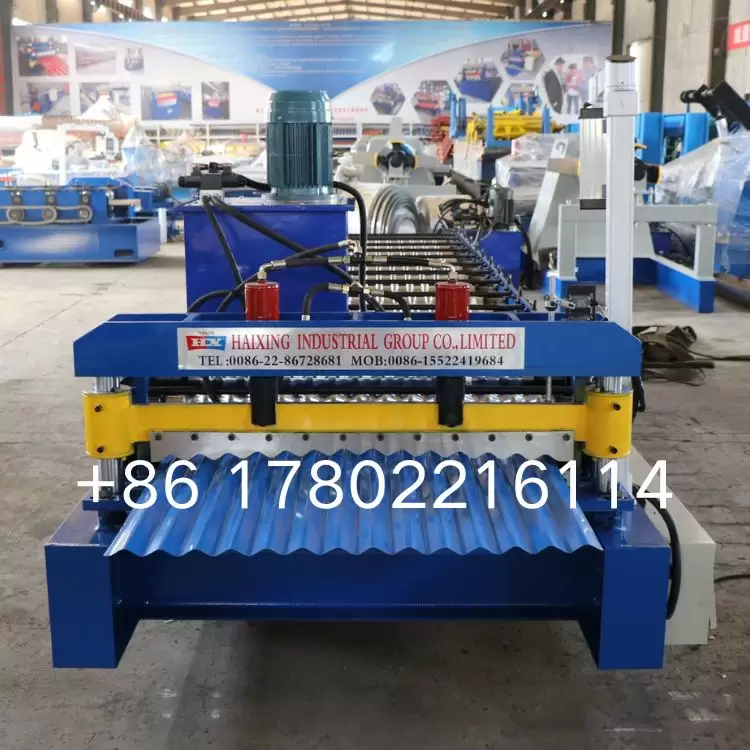

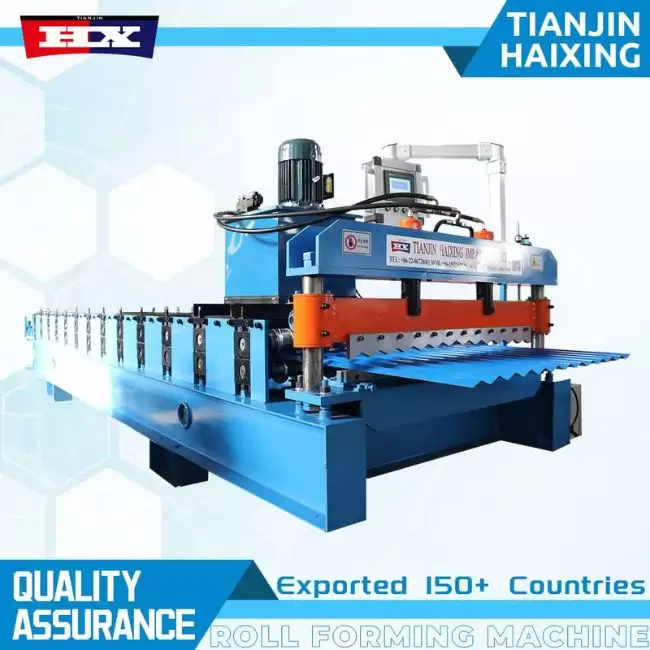

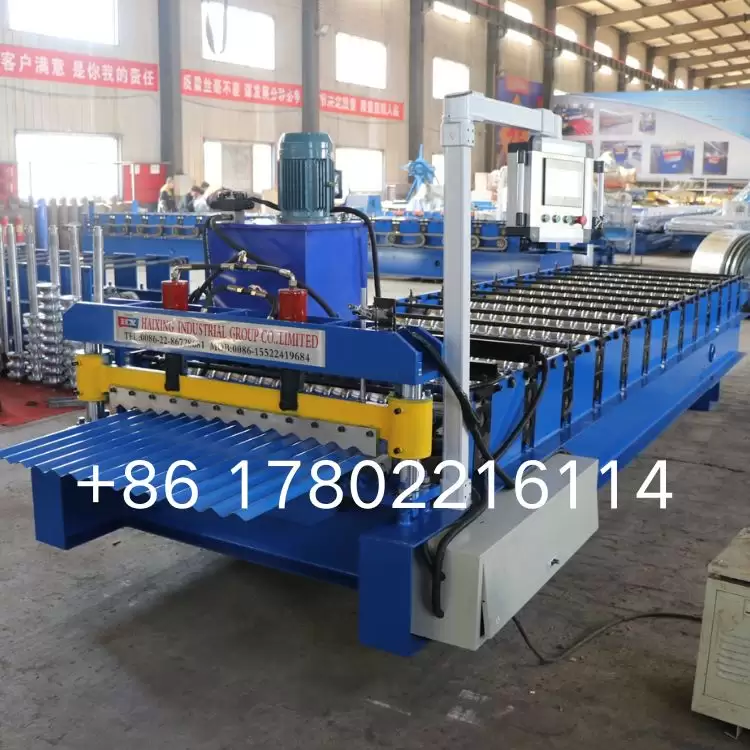

The 1032 corrugated roll forming machine is designed to produce high-precision metal panels for roofing and wall cladding applications. Its classic wave profile offers excellent structural strength, water resistance, and a clean aesthetic, making it ideal for industrial, agricultural, and residential buildings. Manufactured by Haixing Tianjin, a CE and ISO certified company with over 28 years of experience, this machine combines reliable performance with smart automation. Trusted by clients in more than 150 countries, we deliver tailored solutions and lifelong technical support for global construction projects.
Detailed Description
glazed tile roll forming machine metal roofing til 1095
| Formed Material | Pre-Painted Galvanized (PPGI), Pre-Painted Galvalume (PPGL), Galvanized Iron (GI), and Galvalume (GL) |
| Thickness | 0.3-0.8mm |
| Width | 1250mm(customized) |
| Decoiler | Manual decoiler(will give you as free) |

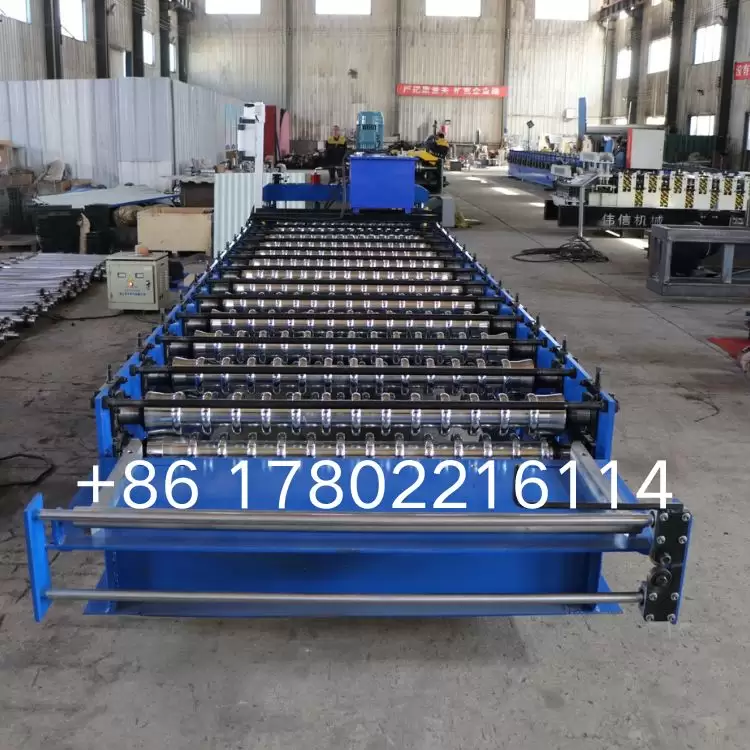

| Roller station | 12 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |

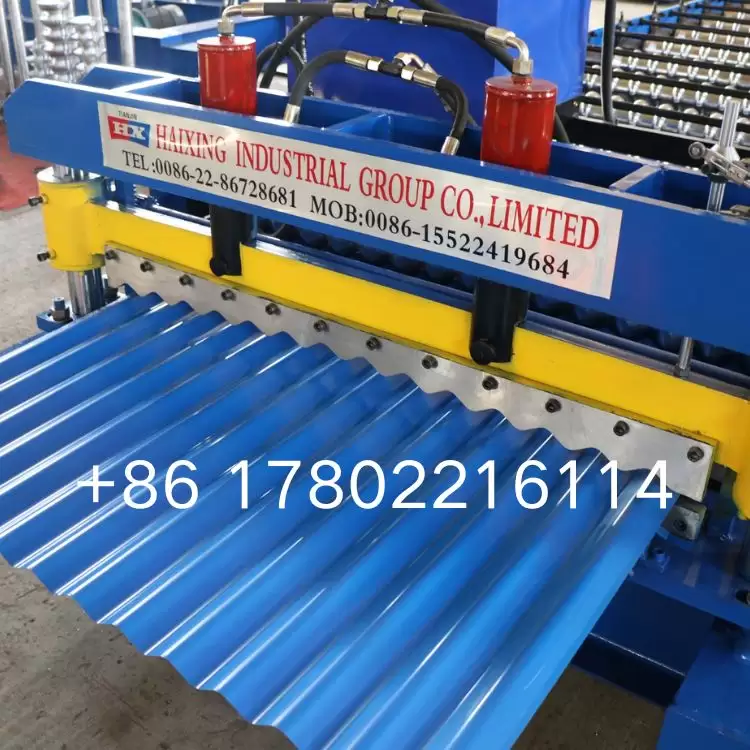

| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 5.5+4KW |
| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V 50Hz 3Phase (As your requirement) |
| Forming Speed | 10-15 m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Why Choose Us
Cost-Effective Procurement
We offer flexible order options starting from a single unit, along with competitive bulk pricing to help optimize your sourcing budget.
Intelligent Automation
Integrated with a fully automated PLC control system, our machines require only 1–2 operators, greatly reducing labor costs and improving operational efficiency.
Long-Lasting Mold Performance
Made from Cr12MoV steel and professionally quenched, the molds are engineered for durability and can operate continuously for over 500,000 meters with stable precision.
Localized Service Worldwide
Our skilled engineers are available for on-site installation and hands-on training in major export regions, ensuring smooth commissioning and localized support.
Extensive Global Track Record
With more than 1,000 machines installed internationally, we can provide anonymous customer case studies from your region to help guide your investment decisions.
About Us
Haixing Tianjin provides precision-engineered cold forming solutions built on more than 28 years of industry experience. As a reliable manufacturer trusted by customers in over 150 countries, we focus on delivering high-performance roll forming equipment designed for long-term reliability. Certified with CE and ISO, we combine advanced Chinese manufacturing capabilities with international standards to supply durable, efficient roofing system solutions worldwide.
FAQ:
Q: What types of roof panel forming machines do you mainly produce?
A: We focus on metal roof panel roll forming machines, including vertical lock seam panels, corner panels, corrugated panels, antique glazed tiles and other 20+ types of equipment, supporting customized molds.
Q: What raw materials are suitable for the machine? Thickness range?
A: Mainly processed galvanized sheets, color-coated sheets, aluminum alloy sheets, material thickness can usually be adjusted according to demand.
Q: What is the production speed of the equipment?
A: The standard model speed is 8-15 meters/minute, and the high-end model can reach 20 meters/minute, depending on the complexity of the version.
Q: Can you provide a trial video or sample?
A: We can provide real-time trial videos and molded samples for delivery. If you need on-site inspection, please make an appointment to visit the factory.
Q: Is the equipment fully automatic or semi-automatic? How many people are needed to operate it?
A: Standard PLC fully automatic control system, only 1-2 people are required to operate (feeding + monitoring), and high-end models can be connected to automatic feeding racks.
Q: What is the material of the mold? What is the service life?
A: The mold is made of Cr12MOV mold steel, surface quenching treatment, and the service life can reach more than 500,000 extended meters under normal use, and it supports renovation and maintenance.
Q: Does it support customized version? How long is the mold development cycle?
A: Support customized version according to drawings, the mold development cycle is about 20-30 days (need to confirm the complexity of the drawings), and 3D design solutions can be provided first.
Q: What is the minimum order quantity? Can you accept sample orders?
A: 1 unit minimum order, support sample orders (need to bear additional mold debugging costs), and bulk orders can enjoy discounts.
Q: What is the payment method?
A: General terms: 30% advance payment, 70% paid before shipment, support T/T, L/C, etc.
