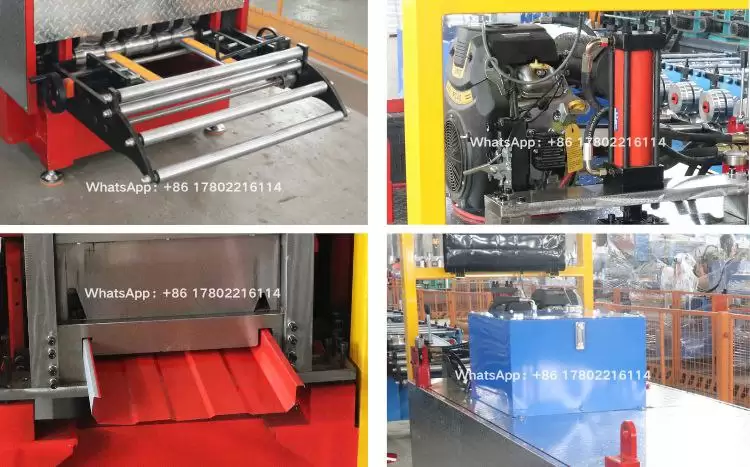

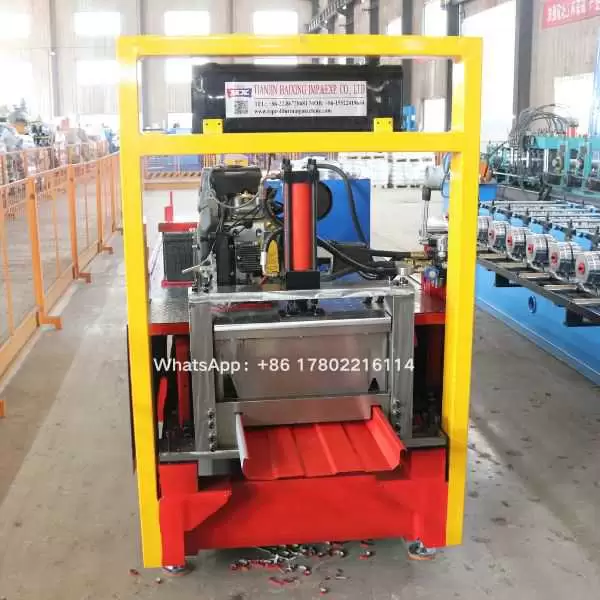

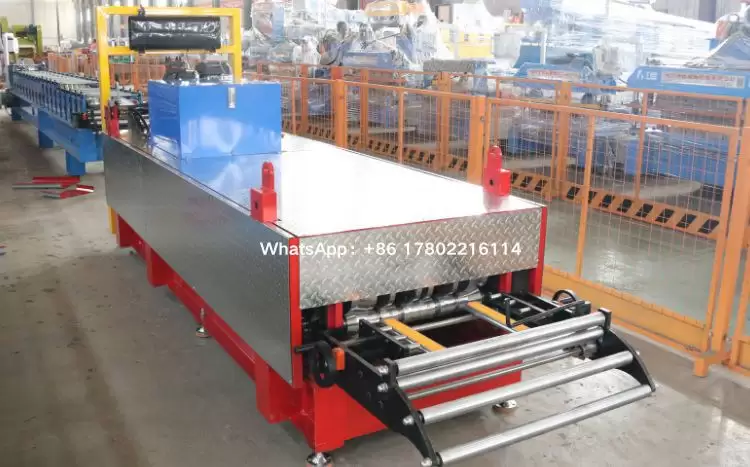

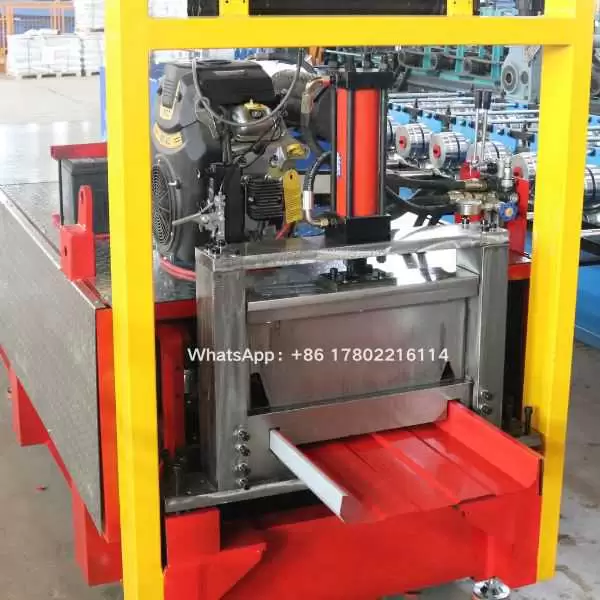

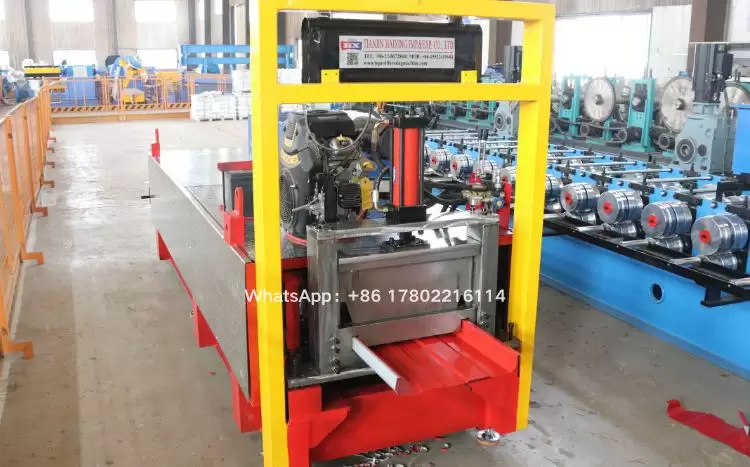

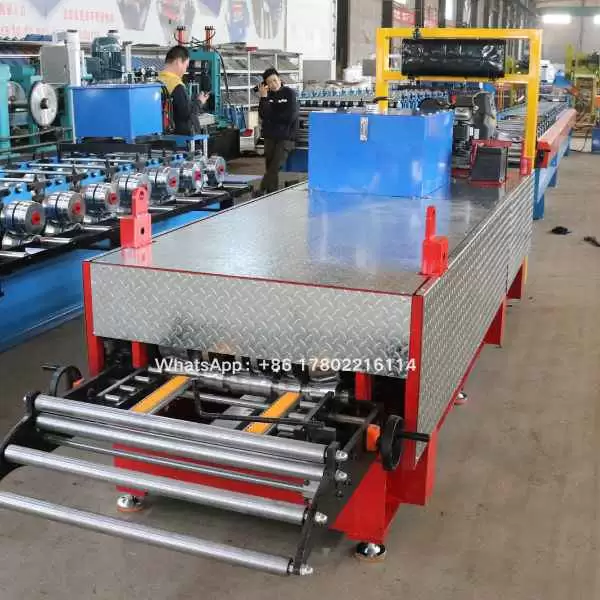

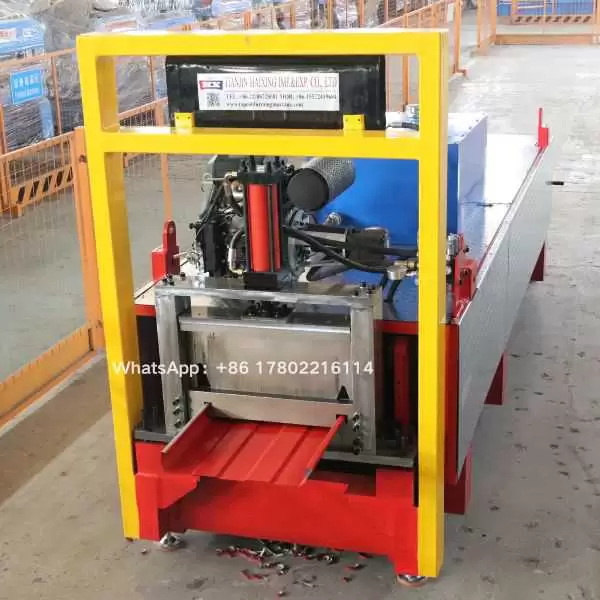

KR18 standing seam machine

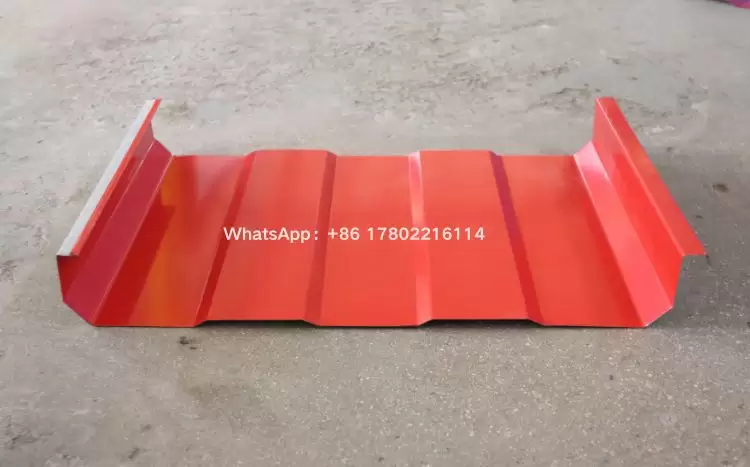

The KR18 Standing Seam Machine is a cutting-edge industrial equipment designed for manufacturing high-quality standing seam metal roofing and wall panels. Engineered for durability and precision, this machine efficiently processes various metal coils (galvanized steel, aluminum, copper, etc.) into seamless, watertight panels, ideal for commercial, industrial, and residential construction projects. CR12MoV high-grade steel cutting blades (heat-treated to HRC 60–62) for clean, burr-free cuts.Mobile design allows on-site operation in remote locations .
Details
KR18 standing seam machine
| Material Width | 610mm |
| Effective Width | 457mm |
| Thickness of Coil | 0.4-0.8mm aluminum coil |
| Application | roofing system |
| Estimated Dimension | 4500mmX950mmX1800mm |
| Total Weight | 3 Tons |
| Main Power | 7.5 KW |
| Decoiler | Manual or Hydraulic Decoiler |
| Forming Speed | 0-15m/min |
| Forming Station | 9 rollers with hard chromium |
| Material of Shaft | High Grade forged 45# Steel |
| Diameter of the Roll | 90mm |
| Material of Roller | High Quality Cr12Mov Steel Quenched HRC58-62 ° |
| Processing Technology | Rough Processing ---Refined Processing--Hard Chromium Plating. |
| Material of cutting blade | Cr12MoV with Quenched Treatment |
| Cutting system | Hydraulic Stop or Tracking Cutting |
| Voltage | 380V/50HZ/3 Phase or as Customer Require |
Why Choose Us
**28 years of focus on manufacturing**: We have been deeply involved in the field of tile presses since 1996, with profound technical accumulation.
**Global actual combat verification**: The equipment has been exported to more than 150 countries and can adapt to various climates and working conditions.
**EU CE/International ISO certification**: Strictly implement international standards, safety and compliance are guaranteed.
**1-to-1 solution customization**: Customize the production line according to your plate thickness, wave shape, and output requirements.
About us
Engineering Excellence, Global Trust – Built Over 28 Years

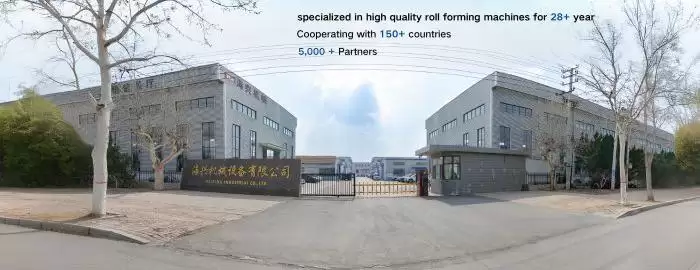

Since 1996, Haixing Tianjin has been at the forefront of designing and manufacturing premium cold roll forming machines for the global construction industry. With over 28 years of engineering expertise, CE and ISO-certified processes, we deliver innovative, high-performance machinery that drives productivity for clients across Europe, the Americas, Africa, and beyond.
KR18 standing seam machine
FAQ:
Q: What types of roof panel forming machines do you mainly produce?
A: We focus on metal roof panel roll forming machines, including vertical lock seam panels, corner panels, corrugated panels, antique glazed tiles and other 20+ types of equipment, supporting customized molds.
Q: What raw materials are suitable for the machine? Thickness range?
A: Mainly processed galvanized sheets, color-coated sheets, aluminum alloy sheets, material thickness can usually be adjusted according to demand.
Q: What is the production speed of the equipment?
A: The standard model speed is 8-15 meters/minute, and the high-end model can reach 20 meters/minute, depending on the complexity of the version.
Q: Can you provide a trial video or sample?
A: We can provide real-time trial videos and molded samples for delivery. If you need on-site inspection, please make an appointment to visit the factory.
Q: Is the equipment fully automatic or semi-automatic? How many people are needed to operate it?
A: Standard PLC fully automatic control system, only 1-2 people are needed to operate (feeding + monitoring), and high-end models can be connected to automatic feeding racks.
Q: What is the material of the mold? What is the service life?
A: The mold is made of Cr12MOV mold steel, surface quenching treatment, and the service life can reach more than 500,000 extended meters under normal use, and it supports renovation and maintenance.
Q: Does it support customized version? How long is the mold development cycle?
A: Support customized version according to drawings, the mold development cycle is about 20-30 days (need to confirm the complexity of the drawings), and a 3D design plan can be provided first.
Q: Can the equipment voltage and frequency adapt to our country?
A: Support global voltage customization (220V/380V/415V, 50Hz/60Hz), and will be debugged according to the customer's national standards before leaving the factory.
