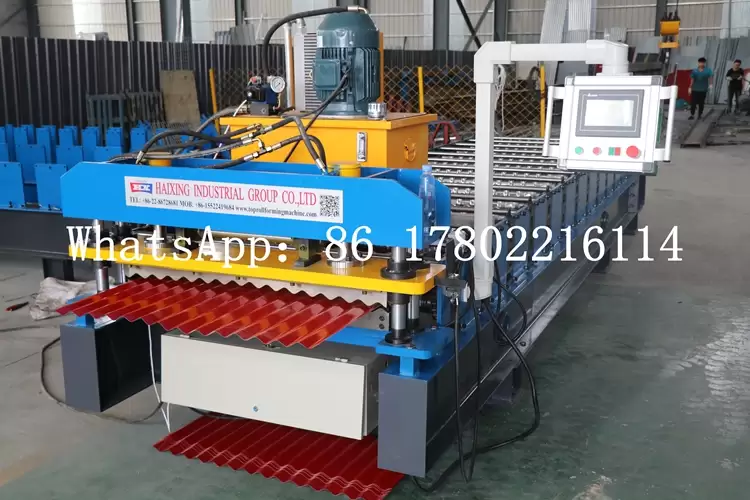

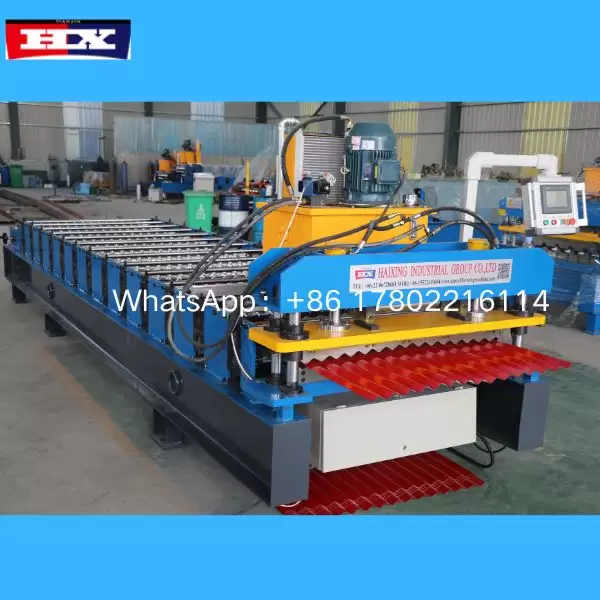

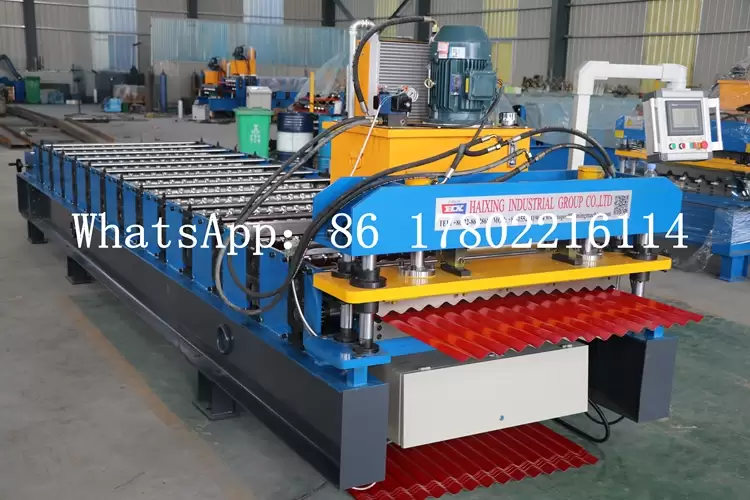

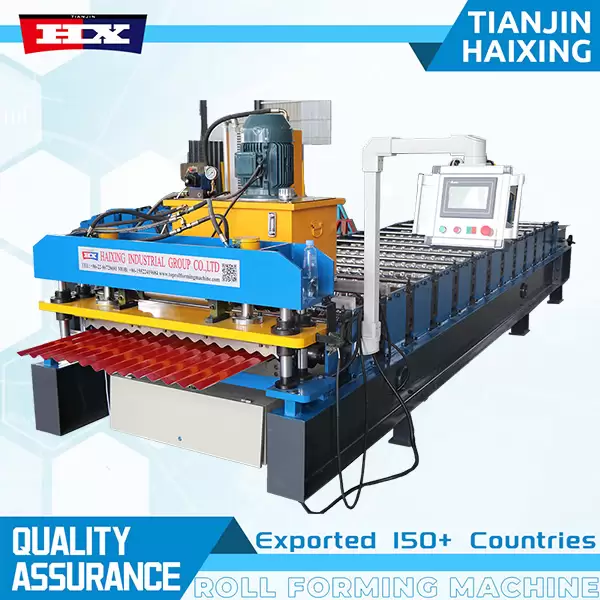

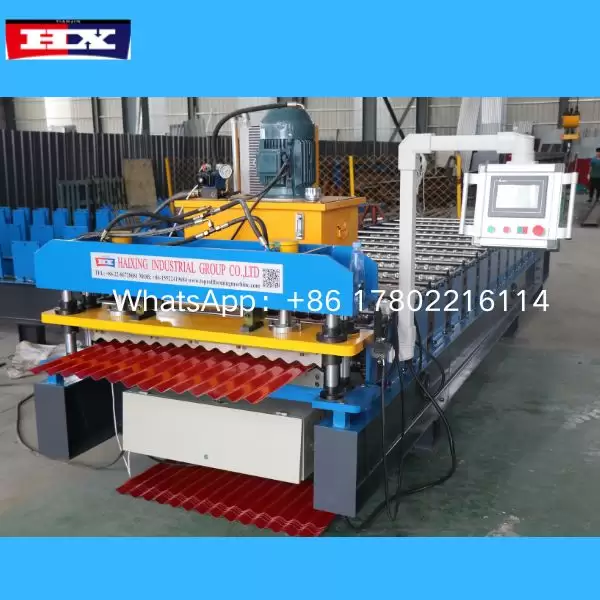

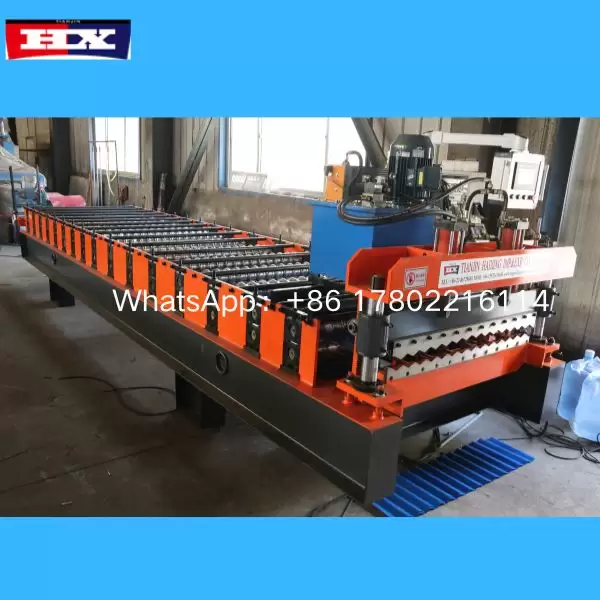

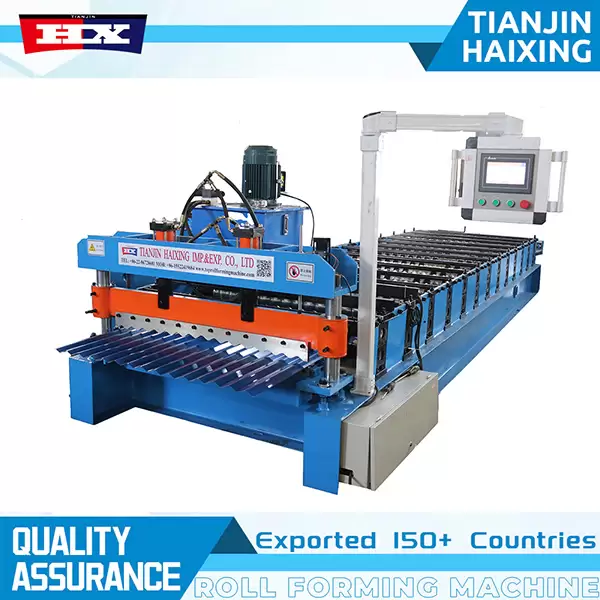

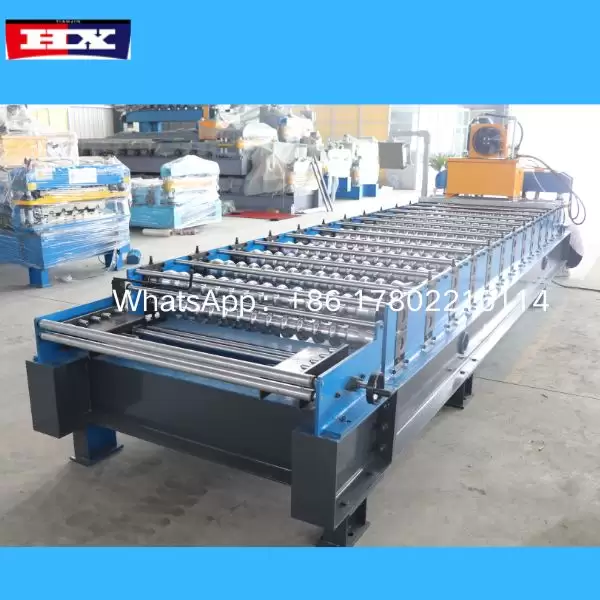

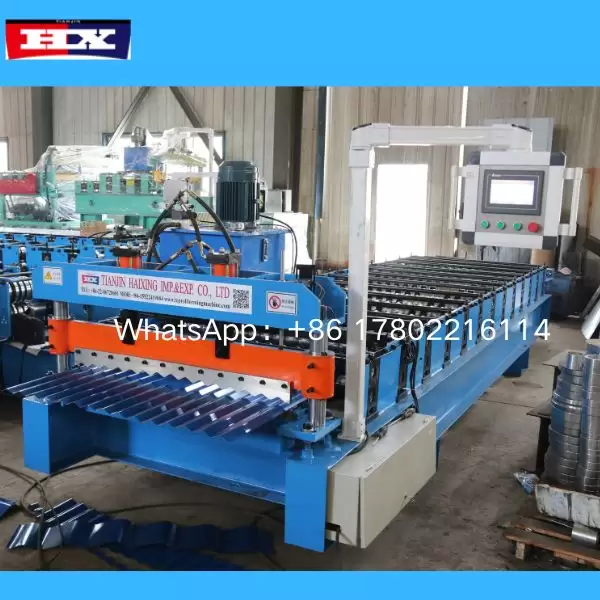

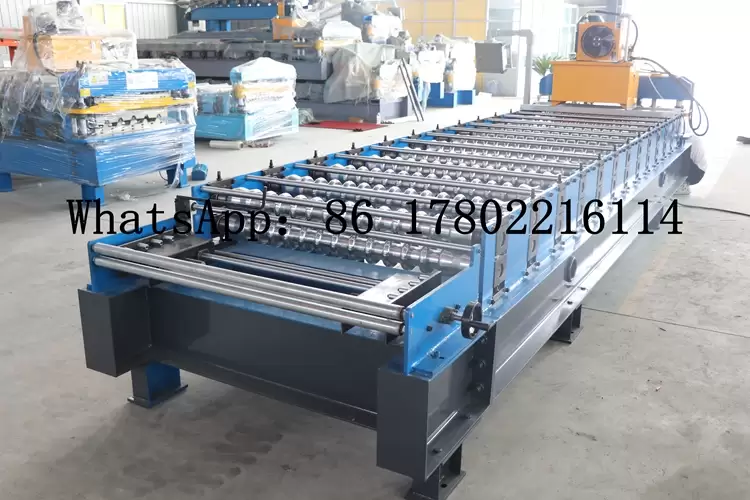

corrugated tole bending machine

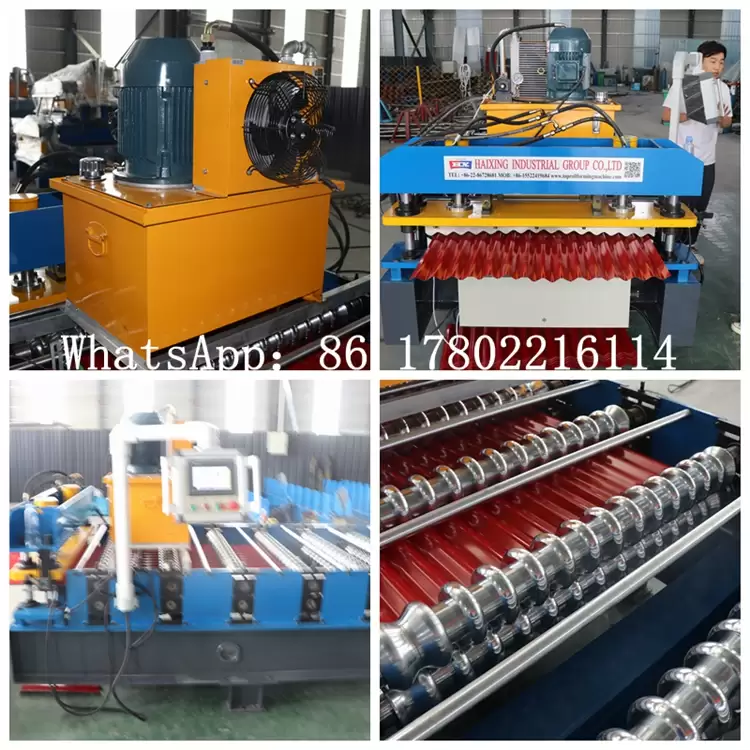

corrugated tole bending machine is engineered for manufacturers who require accuracy, durability, and efficiency in corrugated sheet bending. Equipped with advanced forming rollers and a robust frame, it delivers smooth, uniform bends while maintaining the sheet’s structural integrity. Ideal for roofing, cladding, and construction applications, this machine ensures consistent results with minimal maintenance. With high productivity and precision engineering, it is a dependable choice for large-scale metal fabrication projects.
corrugated tole bending machine
corrugated tole bending machine
| Formed Material |
GI/GL, PPGI/PPGL |
| Thickness |
0.3-0.8mm |
| Width |
914mm(customized) |
| Decoiler |
Manual decoiler(will give you as free) |
| Roller station |
15 rows (As your requirement) |
| Diameter of shaft |
70mm solid shaft |
| Material of rollers |
45# steel, forging with chromium plate 0.05mm |
| Cutter |
Cr12 Mov quenched treatment 58℃-62℃ |
| Power |
5.5+4KW |
| Control system: PLC |
Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language |
English, Spanish, etc.(Support multiple languages) |
| Voltage |
380V 50Hz 3Phase (As your requirement) |
| Forming Speed |
10-15 m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Why Choose Us
Backed by 28+ years of industry experience and a proven record of 1,200 successful projects across the globe, we are recognized as a leading authority in roll forming solutions. Each machine is meticulously crafted to exceed CE and ISO requirements, ensuring reliable quality and smooth operation. For added assurance, we offer an extended warranty of up to 18 months. Every delivery includes on-site setup and practical training for your operators, ensuring optimal performance from day one.
About US
As a leader in advanced cold forming solutions, Haixing Tianjin specializes in producing high-precision equipment for roofing and construction applications. Backed by 28 years of experience, we’ve earned the trust of customers in over 150 countries, supplying roll forming systems that deliver unmatched reliability and efficiency. Our CE and ISO-certified manufacturing integrates robust Chinese production expertise with stringent global standards, guaranteeing superior performance and enduring quality in every machine we build.
FAQ:
Q: What types of roof panel forming machines do you mainly produce?
A: We focus on metal roof panel roll forming machines, including vertical lock seam panels, corner panels, corrugated panels, antique glazed tiles and other 20+ types of equipment, supporting customized molds.
Q: What raw materials are suitable for the machine? Thickness range?
A: Mainly processed galvanized sheets, color-coated sheets, aluminum alloy sheets, material thickness can usually be adjusted according to demand.
Q: What is the production speed of the equipment?
A: The standard model speed is 10-15 meters/minute, and the high-end model can reach 20 meters/minute, depending on the complexity of the pattern.
Q: Can you provide a trial video or sample?
A: We can provide real-time trial videos and molded samples for delivery. If you need on-site inspection, please make an appointment to visit the factory.
Q: Is the equipment fully automatic or semi-automatic? How many people are needed to operate it?
A: Standard PLC fully automatic control system, only 1-2 people are needed to operate (feeding + monitoring), and high-end models can be connected to automatic feeding racks.
Q: What is the material of the mold? What is the service life?
A: The mold is made of Cr12MOV mold steel, surface quenching treatment, and the service life can reach more than 500,000 extended meters under normal use, and it supports renovation and maintenance.
Q: Does it support customized version? How long is the mold development cycle?
A: Support customized version according to drawings, the mold development cycle is about 20-30 days (need to confirm the complexity of the drawings), and a 3D design plan can be provided first.
Q: Can the equipment voltage and frequency adapt to our country?
A: Support global voltage customization (220V/380V/415V, 50Hz/60Hz), and will be debugged according to the customer's national standards before leaving the factory.
