corrugated iron making machine
Our corrugated iron making machine is designed for manufacturers who need speed, precision, and durability in corrugated sheet production. Equipped with a high-accuracy roll forming system, it ensures each sheet has uniform wave patterns, smooth edges, and excellent structural strength. Built with a heavy-duty frame and automated control system, this machine delivers stable operation, high output, and low maintenance, making it an ideal choice for large-scale roofing and wall cladding projects.

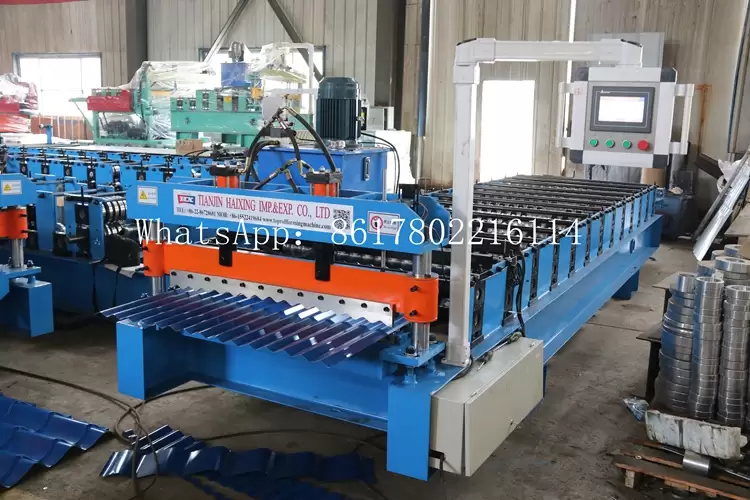

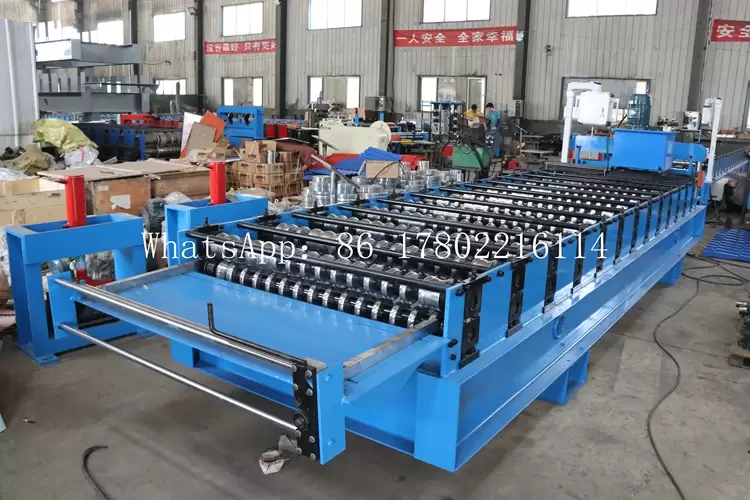

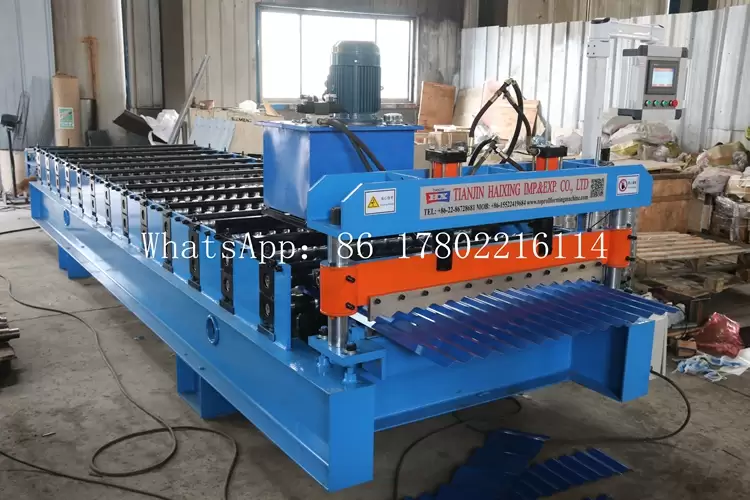

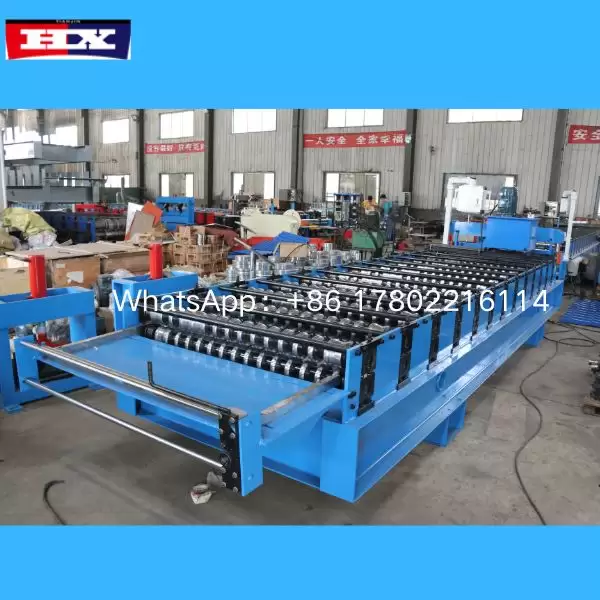

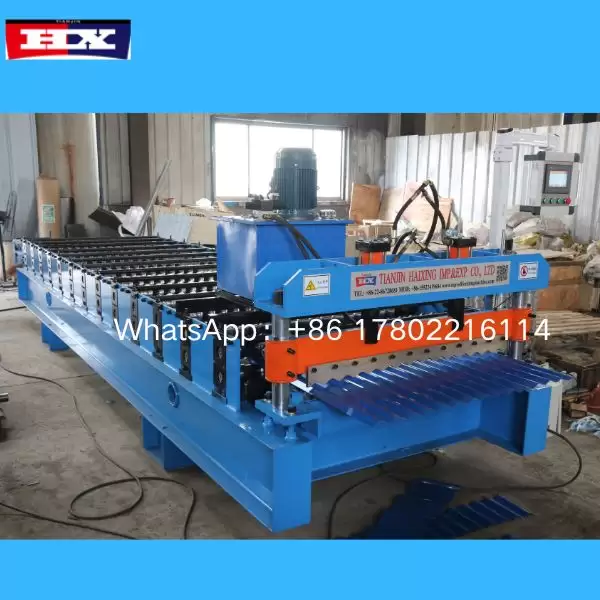

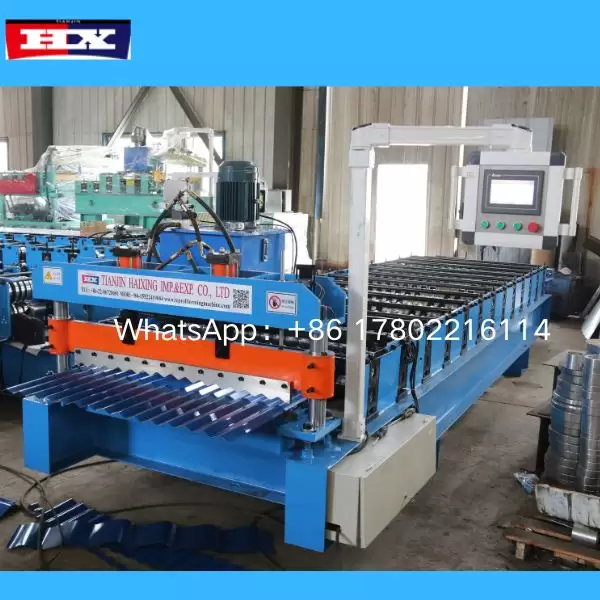

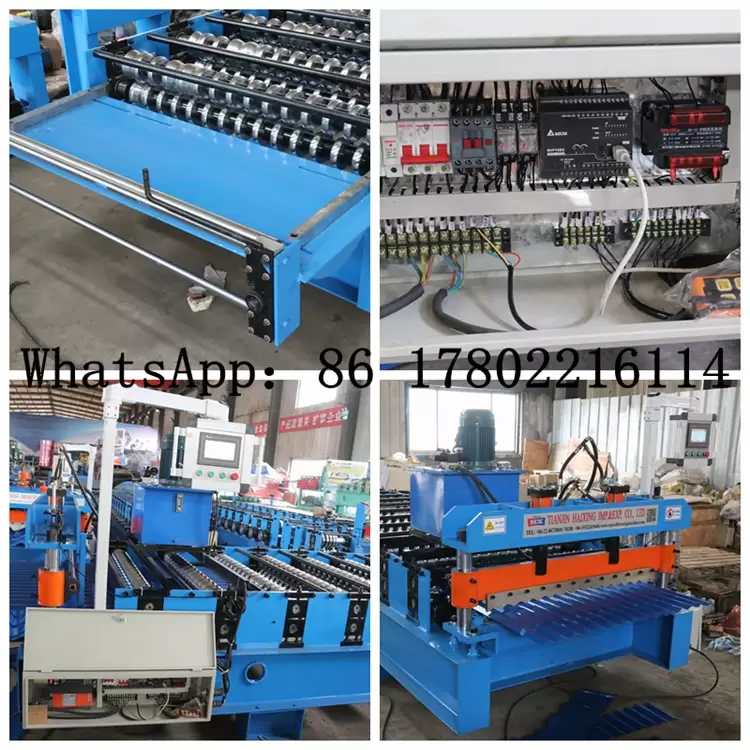

corrugated iron making machine
corrugated iron making machine detail
| Formed Material |
GI/GL, PPGI/PPGL |
| Thickness |
0.3-0.8mm |
| Width |
914mm(customized) |
| Decoiler |
Manual decoiler(will give you as free) |
| Roller station |
15 rows (As your requirement) |
| Diameter of shaft |
70mm solid shaft |
| Material of rollers |
45# steel, forging with chromium plate 0.05mm |
| Cutter |
Cr12 Mov quenched treatment 58℃-62℃ |
| Power |
7.5+5.5KW |
| Control system: PLC |
Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language |
English, Spanish, etc.(Support multiple languages) |
| Voltage |
380V 50Hz 3Phase (As your requirement) |
| Forming Speed |
10-15 m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Why Choose Us
With more than 28 years of expertise and over 1,200 installations worldwide, we have established ourselves as a trusted leader in roll forming technology. Our machines are built to meet and surpass CE and ISO standards, guaranteeing consistent quality and dependable operation. We back every investment with up to 18 months of extended warranty, giving you confidence in your equipment’s durability. To maximize performance from the start, we provide professional on-site commissioning and comprehensive operator training—because lasting results begin with the right foundation.
About US
Haixing Tianjin stands at the forefront of cold forming technology, delivering precision-engineered machinery tailored for the roofing and construction industries. With over 28 years of proven expertise, we have built a strong global presence, serving clients in more than 150 countries with roll forming solutions that combine exceptional efficiency and dependable performance. Meeting and exceeding CE and ISO standards, our products unite the strength of Chinese manufacturing with the highest international quality benchmarks, ensuring consistent results and long-term value.
FAQ:
Q: What types of roof panel forming machines do you mainly produce?
A: We focus on metal roof panel roll forming machines, including vertical lock seam panels, corner panels, corrugated panels, antique glazed tiles and other 20+ types of equipment, supporting customized molds.
Q: What raw materials are suitable for the machine? Thickness range?
A: Mainly processed galvanized sheets, color-coated sheets, aluminum alloy sheets, material thickness can usually be adjusted according to demand.
Q: What is the production speed of the equipment?
A: The standard model speed is 10-15 meters/minute, and the high-end model can reach 20 meters/minute, depending on the complexity of the pattern.
Q: Can you provide a trial video or sample?
A: We can provide real-time trial videos and molded samples for delivery. If you need on-site inspection, please make an appointment to visit the factory.
Q: Is the equipment fully automatic or semi-automatic? How many people are needed to operate it?
A: Standard PLC fully automatic control system, only 1-2 people are needed to operate (feeding + monitoring), and high-end models can be connected to automatic feeding racks.
Q: What is the material of the mold? What is the service life?
A: The mold is made of Cr12MOV mold steel, surface quenching treatment, and the service life can reach more than 500,000 extended meters under normal use, and it supports renovation and maintenance.
Q: Does it support customized version? How long is the mold development cycle?
A: Support customized version according to drawings, the mold development cycle is about 20-30 days (need to confirm the complexity of the drawings), and a 3D design plan can be provided first.
Q: Can the equipment voltage and frequency adapt to our country?
A: Support global voltage customization (220V/380V/415V, 50Hz/60Hz), and will be debugged according to the customer's national standards before leaving the factory.
