TR4 IBR roof sheet forming machine is designed for accurate and efficient production of trapezoidal metal roofing panels, featuring advanced technology for consistent quality and high-speed operation to meet diverse roofing needs.
Our TR4 trapezoidal roof panel machine is engineered for high-volume production of architectural-grade TR4 profile roofing sheets, delivering outstanding performance for residential, commercial, and industrial use. Featuring 45# forged steel rollers with a durable 0.05mm chrome plating, it provides excellent wear resistance and a flawless surface finish for galvanized steel, aluminum, and color-coated coils. The Cr12MoV hardened cutting knives guarantee precise, sharp, and burr-free cuts. An intuitive multi-language PLC control system (including English and Spanish) ensures easy operation and real-time monitoring.
With over 28 years of expertise from Haixing Tianjin, our CE and ISO certified manufacturing meets global standards. Our dedicated R&D team offers customized solutions, while comprehensive installation support and lifetime technical service in multiple languages help customers across Europe, America, and beyond boost their competitiveness.
Machine Details:

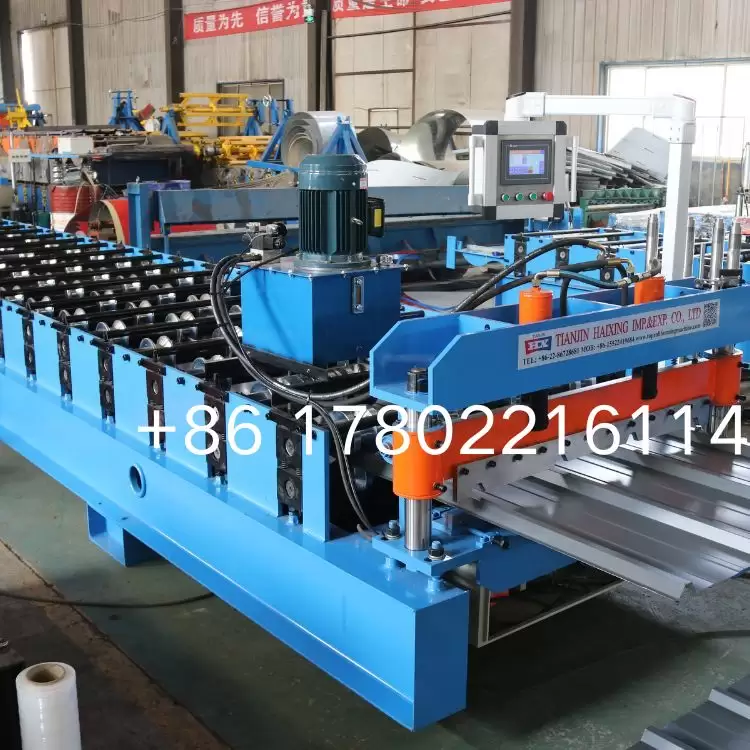

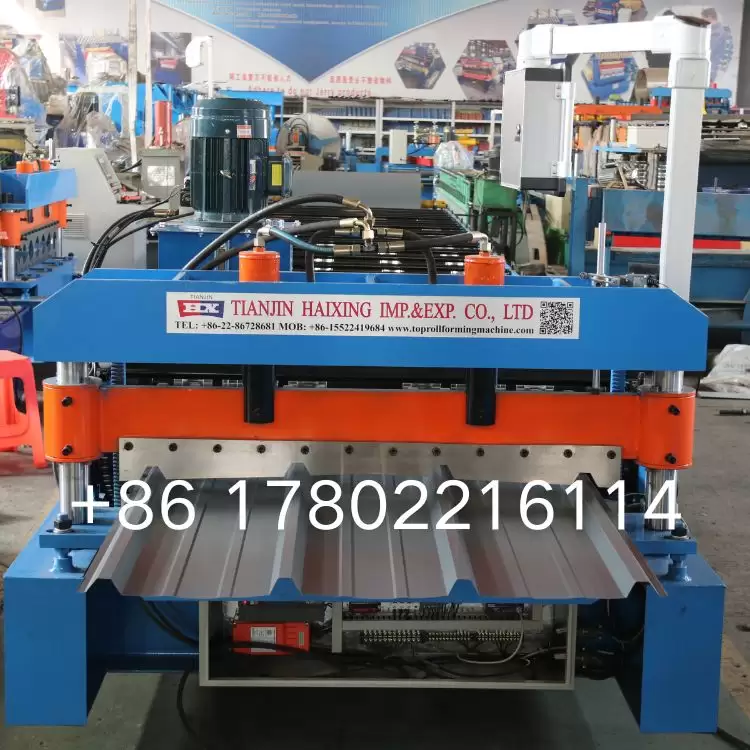

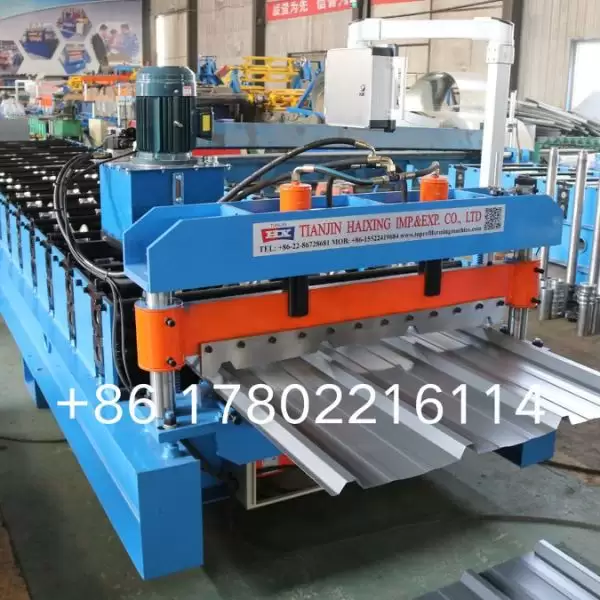

TR4 trapezoidal roof panel machine
Formed Material
GI/GL, PPGI/PPGL
Thickness
0.3-0.8mm
Width
1220mm(customized)
Decoiler
Manual decoiler(will give you as free)

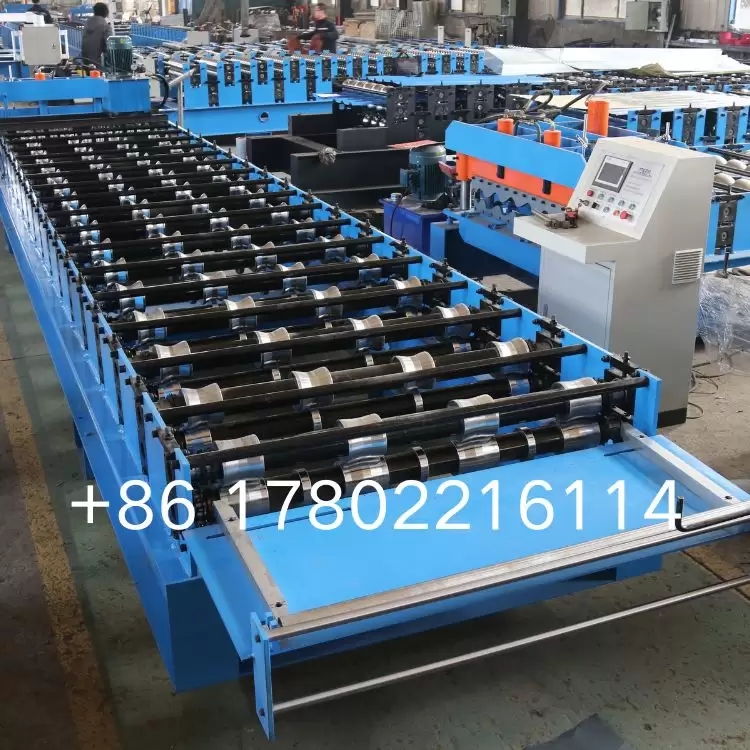

Roller station
15 rows (As your requirement)
Diameter of shaft
70mm solid shaft
Material of rollers
45# steel, forging with chromium plate 0.05mm
Cutter
Cr12 Mov quenched treatment 58℃-62℃
Power
5.5+4KW
Control system: PLC
Automatic production of the whole machine. Can set batch, length, quantity, etc.
10-15m/min (The speed depends on the shape of the tile and the thickness of the material.)
Why choose us
*Extensive Industry Experience Leverage more than 28 years of focused R&D and manufacturing expertise, backed by a skilled engineering team committed to advancing cold roll forming technology.
*Worldwide Standards with Localized Service Our equipment meets CE, ISO, and global safety certifications, ensuring reliable performance. Benefit from smooth communication through our multilingual team and a strong local service network.
*Tailored Solutions for Diverse Markets From lightweight roofing applications in Europe to heavy-duty structures in South America, we customize machine settings, tooling, and control systems to suit regional material requirements and production targets.
About us
Engineering Excellence and Global Trust Built Over Nearly Three Decades
Since 1996, Haixing Tianjin has been at the forefront of designing and manufacturing top-quality cold bending machines for the global construction sector. With more than 28 years of engineering expertise and CE and ISO certified production processes, we provide innovative, efficient machines that boost productivity for customers across Europe, America, Africa, and beyond.
Guided by our philosophy of "Innovation Through Partnership," we work closely with clients to fully understand their specific market demands. From initial profile design to on-site installation assistance and multilingual after-sales support, we equip businesses with advanced technology that meets and surpasses international standards.
FAQ:
Q: Are you a trading company or a factory? A: We are a factory with a professional and service-conscious production team, only for exporting various types of cold roll forming machines.
Q: Can one machine produce only one type of panel profile? A: Not completely. Suitable for automatic three-layer galvanized steel trapezoidal corrugated roofing sheet roll forming machines, glazed tiles. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine? A: Generally, automatic three-layer galvanized steel trapezoidal corrugated roofing sheet roll forming machines can be finished in 20 to 45 working days. But if you need the machines urgently, we can save your time.
Q: Is there any quality control when producing the production line? A: Yes, we have a team responsible for quality control, including raw material placement, roller and other parts processing, roller and shaft surface processing, assembly, testing and packaging.
