Sheet metal forming machine 686
Sheet metal forming machine 686

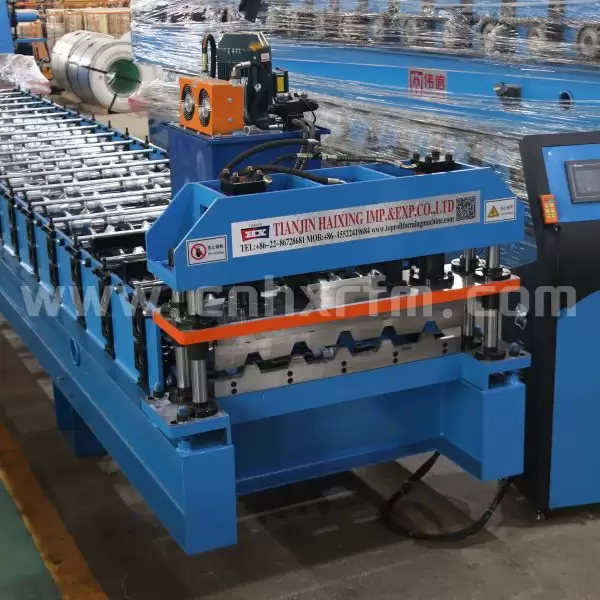

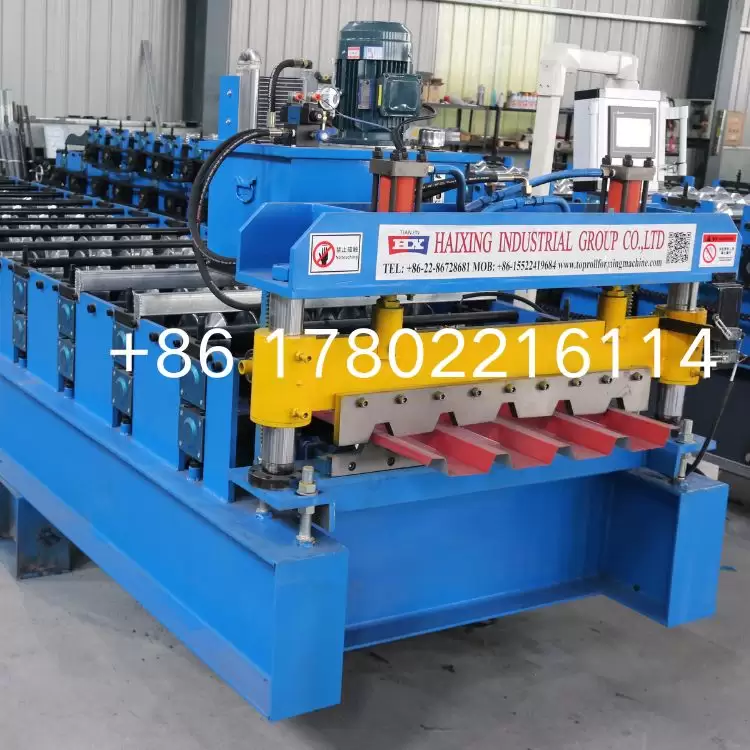

Sheet metal forming machine 686 is designed for high-precision roofing panel production. It features stable performance, easy operation, and durable structure, making it ideal for construction, warehouse, and residential roof applications. Compatible with Pre-Painted Galvanized (PPGI), Pre-Painted Galvalume (PPGL), Galvanized Iron (GI), and Galvalume (GL) from 0.3–0.8mm thick.This model is ideal for a wide range of applications, including industrial construction, warehouse roofing, residential housing, and agricultural buildings. Its user-friendly interface and low-maintenance design make it suitable for both experienced operators and new users.
Details
TR4 TR5 double layer machine
| Formed Material | Pre-Painted Galvanized, Pre-Painted Galvalume, Galvanized Iron , and Galvalume |
| Thickness | 0.3-0.8mm |
| Width | 925mm(customized) |
| Decoiler | Manual decoiler(will give you as free) |

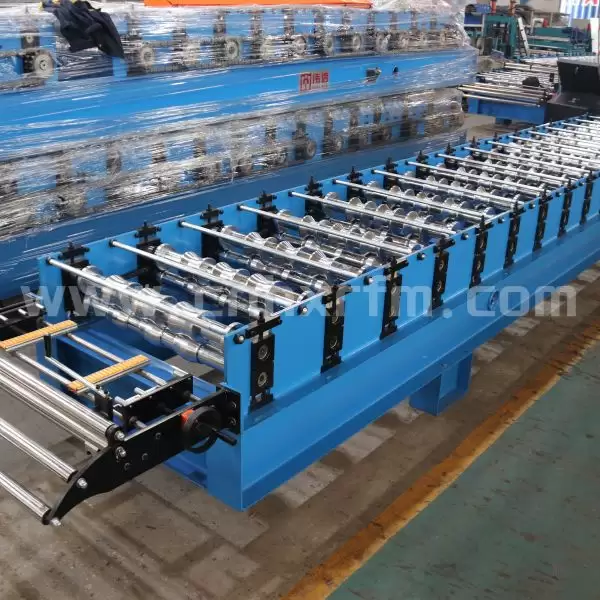

| Roller station | 18 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |

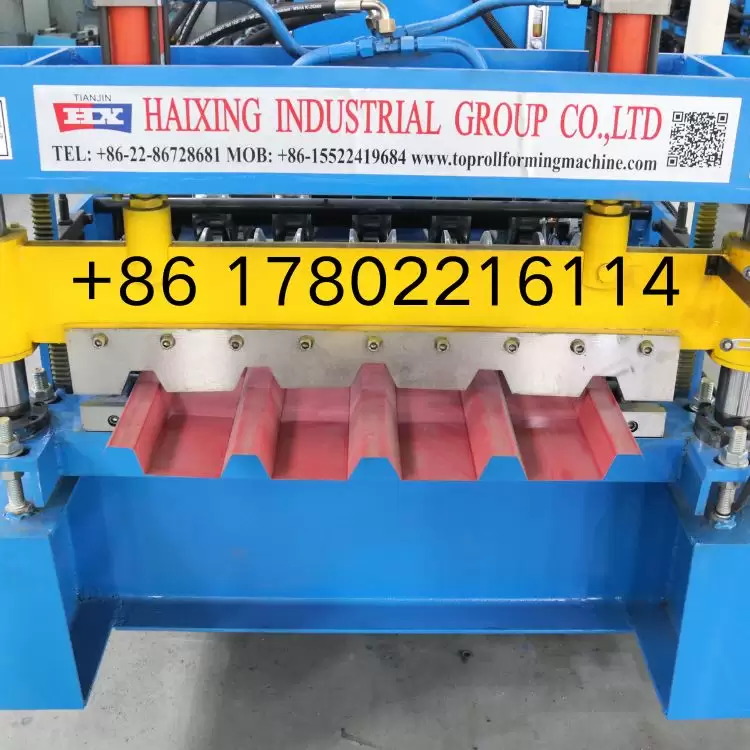

| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 5.5+5.5KW |

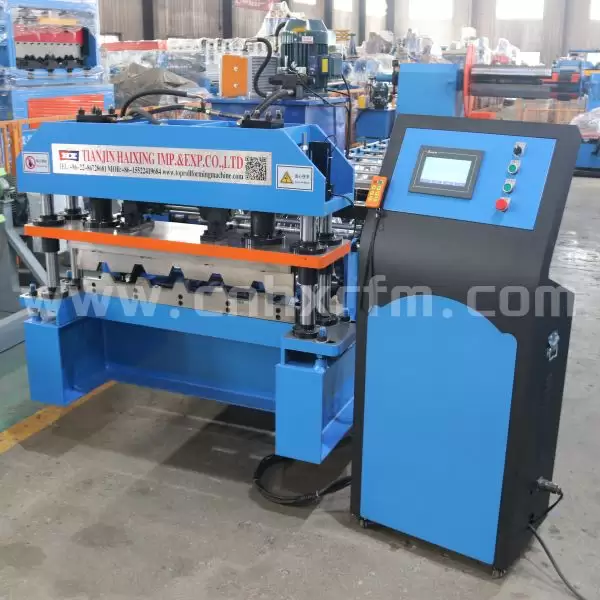

| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V 50Hz 3Phase (As your requirement) |
| Forming Speed | 10-15 m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Why Choose Us
28 Years of Experience with 1200+ Installations Worldwide
Provide CE, ISO Certifications
18 Months Warranty Extension Options
On-Site Commissioning Available
About Us
We provide precision engineering solutions in cold forming technology. For over 28 years, Haixing Tianjin has been a leader in manufacturing the highest quality cold forming machines, serving customers in over 150 countries. As a CE and ISO certified gold supplier, we combine Chinese engineering excellence with global operating standards to deliver roofing solutions.
FAQ:
Q: What types of roof panel forming machines do you mainly produce?
A: We focus on metal roof panel roll forming machines, including vertical lock seam panels, corner panels, corrugated panels, antique glazed tiles and other 20+ types of equipment, supporting customized molds.
Q: What raw materials are suitable for the machine? Thickness range?
A: Mainly processed galvanized sheets, color-coated sheets, aluminum alloy sheets, material thickness can usually be adjusted according to demand.
Q: What is the production speed of the equipment?
A: The standard model speed is 10-15 meters/minute, and the high-end model can reach 20 meters/minute, depending on the complexity of the pattern.
Q: Can you provide a trial video or sample?
A: We can provide real-time trial videos and molded samples for delivery. If you need on-site inspection, please make an appointment to visit the factory.
Q: Is the equipment fully automatic or semi-automatic? How many people are needed to operate it?
A: Standard PLC fully automatic control system, only 1-2 people are needed to operate (feeding + monitoring), and high-end models can be connected to automatic feeding racks.
Q: What is the material of the mold? What is the service life?
A: The mold is made of Cr12MOV mold steel, surface quenching treatment, and the service life can reach more than 500,000 extended meters under normal use, and it supports renovation and maintenance.
Q: Does it support customized version? How long is the mold development cycle?
A: Support customized version according to drawings, the mold development cycle is about 20-30 days (need to confirm the complexity of the drawings), and a 3D design plan can be provided first.
Q: Can the equipment voltage and frequency adapt to our country?
A: Support global voltage customization (220V/380V/415V, 50Hz/60Hz), and will be debugged according to the customer's national standards before leaving the factory.
