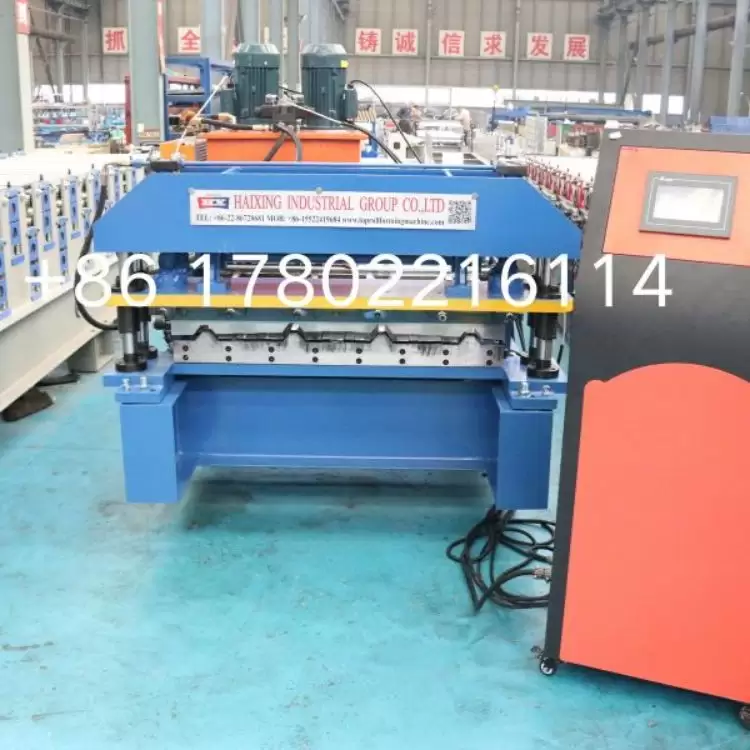

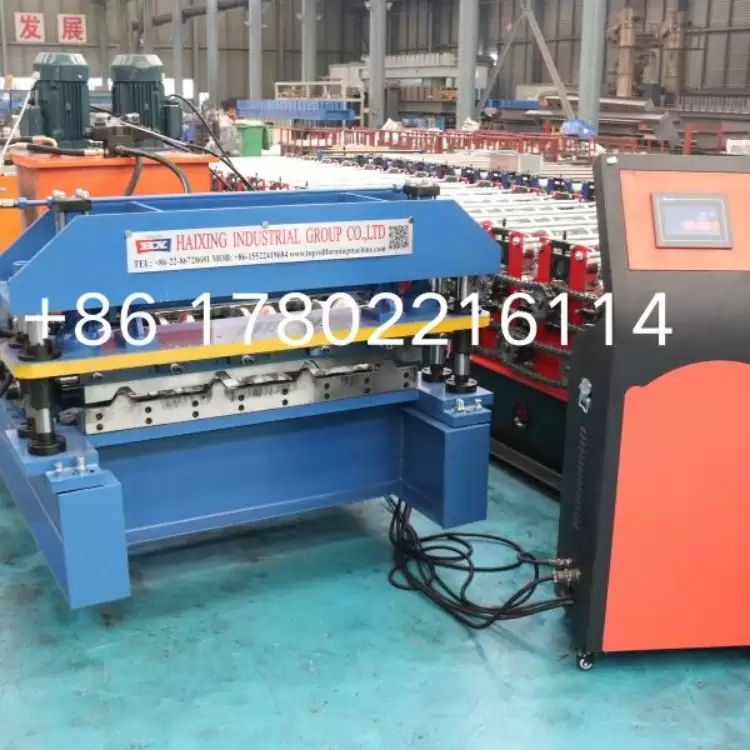

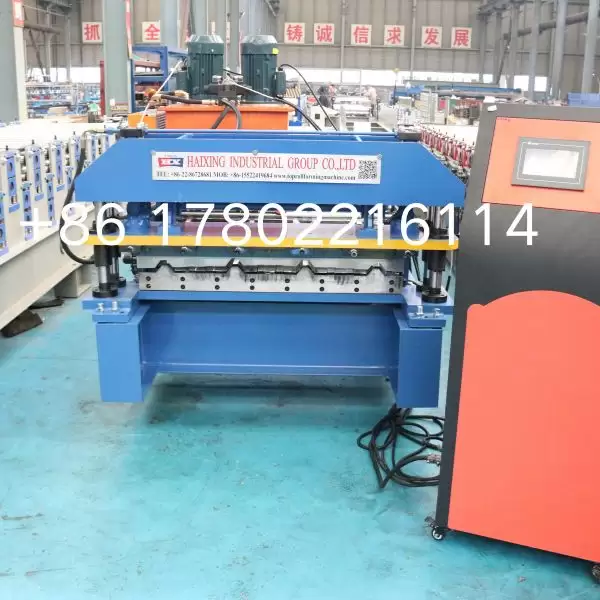

The 914 trapezoidal R panel machine is a reliable and efficient solution for producing high-quality metal roofing and siding panels with an R-profile. Engineered for precision and durability, it features a robust frame, wear-resistant rollers, and a user-friendly control system. Ideal for both industrial and commercial applications, this machine ensures consistent output, stable performance, and long service life, making it a valuable asset for any sheet metal fabrication line.
Product
trapezoidal r panel machine
HX-trapezoidal r panel machine
The trapezoidal R panel machine delivers high-precision forming for metal roofing and siding panels, featuring stable performance, durable structure, and efficient output for various construction needs.
trapezoidal r panel machine

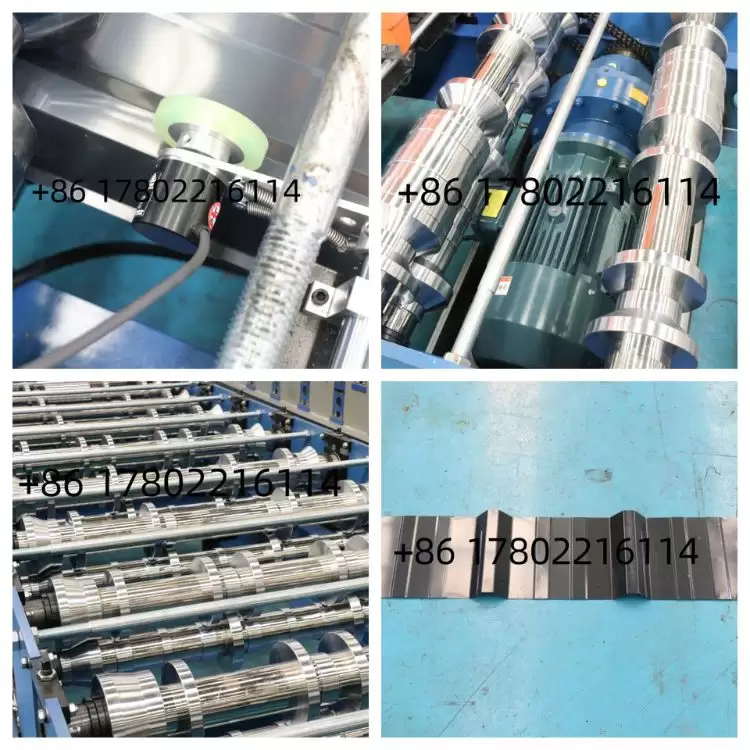

Machine Details:
trapezoidal r panel machine
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.3-0.8mm |
| Width | 1220mm(customized) |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 15 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 5.5+4KW |

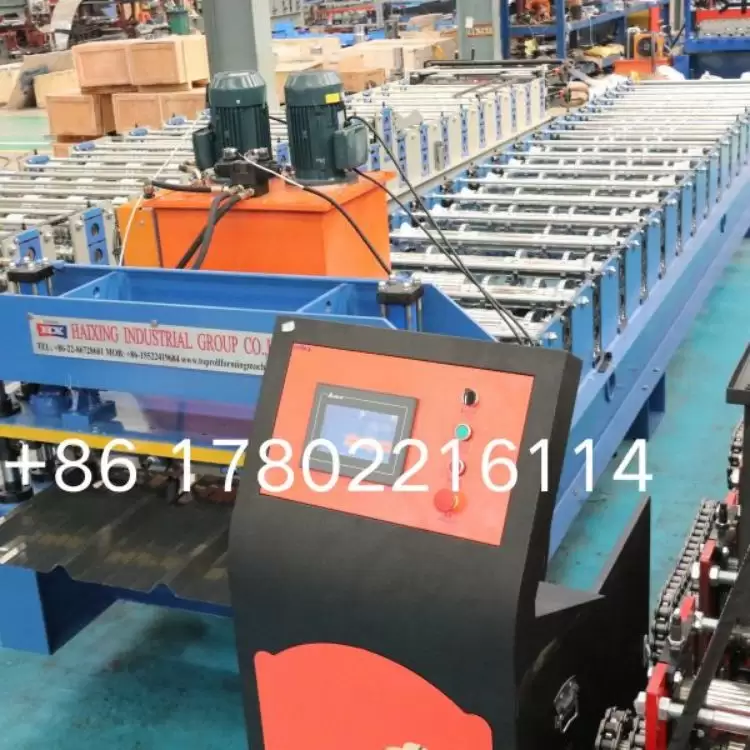

| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 3800V 50Hz 3Phase (As your requirement) |
| Forming Speed | 10-15m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Why choose us
Over 28 Years of Excellence in Roll Forming
With close to 30 years of experience, we have established a strong reputation for innovation, accuracy, and continuous improvement in cold roll forming technology. Our skilled engineering team is dedicated to evolving our machine designs to meet the latest industry needs.
Certified Quality with Global Support
All of our machines are built to meet CE and ISO standards, ensuring top-level quality and safety. Backed by a multilingual team and worldwide service network, we offer responsive and reliable support no matter where you are.
Tailored Solutions for Every Region
From lightweight roofing applications in Europe to heavy-duty structural panels in South America, we adapt machine configurations, tooling, and control systems to align with local materials, standards, and production objectives.
About us
Founded in 1996, Haixing Tianjin has established itself as a leading manufacturer in the cold roll forming industry, delivering high-precision machinery to construction sectors around the world. Backed by over 28 years of technical expertise and certified with CE and ISO standards, our equipment is built to improve efficiency and ensure dependable performance across key markets including Europe, the Americas, and Africa.
Driven by our commitment to “Innovation Through Partnership,” we work hand-in-hand with customers to provide tailored solutions that meet specific regional demands. From custom profile development to on-site commissioning and multilingual after-sales support, we offer full-service solutions that empower our global clients with advanced, standards-compliant technology.
FAQ:
Q: Are you a trading company or a factory?
A: We are a factory with a professional and service-conscious production team, only for exporting various types of cold roll forming machines.
Q: Can one machine produce only one type of panel profile?
A: Not completely. Suitable for automatic three-layer galvanized steel trapezoidal corrugated roofing sheet roll forming machines, glazed tiles. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: Generally, automatic three-layer galvanized steel trapezoidal corrugated roofing sheet roll forming machines can be finished in 20 to 45 working days. But if you need the machines urgently, we can save your time.
Q: Is there any quality control when producing the production line?
A: Yes, we have a team responsible for quality control, including raw material placement, roller and other parts processing, roller and shaft surface processing, assembly, testing and packaging.
