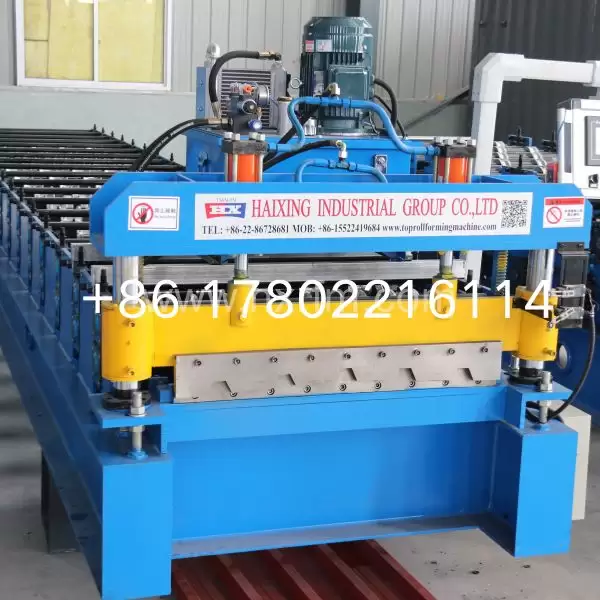

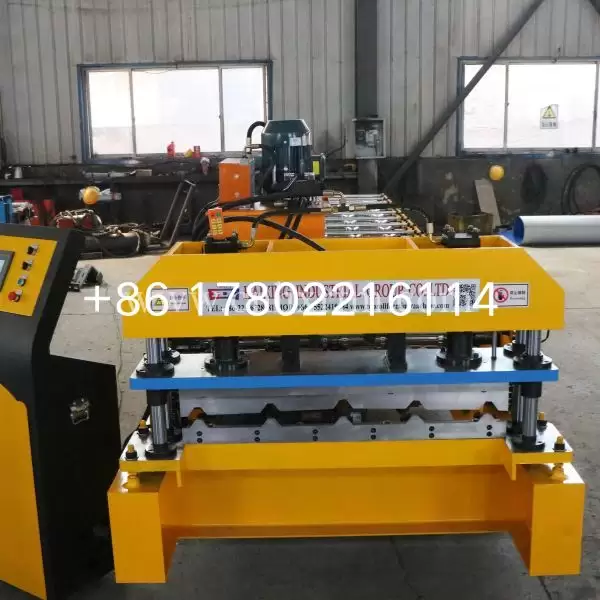

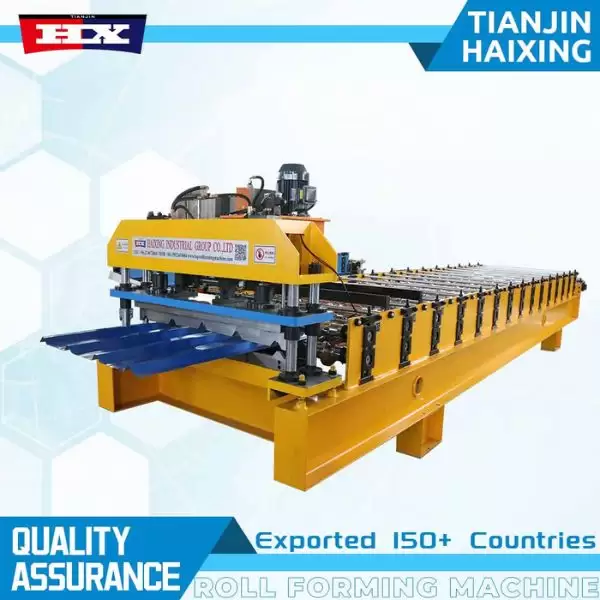

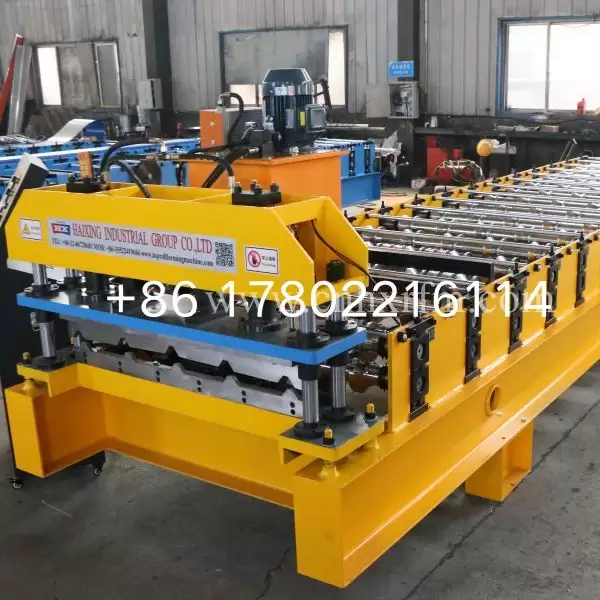

trapezoidal roll forming machineTR5
trapezoidal roll forming machineTR5
The TR5 trapezoidal roof panel machine is designed to produce high-precision trapezoidal metal panels widely used in roofing, wall cladding, and structural siding for industrial, agricultural, and commercial buildings. Built with a durable steel frame and precision-formed rollers, the machine ensures consistent profile quality and long-term stability. Compatible with Pre-Painted Galvanized (PPGI), Pre-Painted Galvalume (PPGL), Galvanized Iron (GI), and Galvalume (GL) sheets with thicknesses from 0.3 mm to 0.8 mm. Equipped with an advanced PLC control system, the TR5 model supports efficient, automated production with minimal labor.
Machine Details:
trapezoidal roll forming machineTR5
| Formed Material | Pre-Painted Galvanized (PPGI), Pre-Painted Galvalume (PPGL), Galvanized Iron (GI), and Galvalume (GL) |
| Thickness | 0.3-0.8mm |
| Width | 1220mm(customized) |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 15 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 5.5+4KW |
| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 3800V 50Hz 3Phase (As your requirement) |
| Forming Speed | 10-15m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Why choose us
Decades of Cold Roll Forming Expertise
With over 28 years of focused experience, Haixing Tianjin is a trusted name in cold roll forming machinery. Our in-house R&D team of mechanical and electrical engineers is committed to continuous innovation, delivering high-performance machines designed for precision, reliability, and long-term use across diverse industries.
Global Standards with Localized Support
Our equipment complies with CE, ISO, and major international safety certifications. To serve a global client base, we offer multilingual communication, remote diagnostics, and localized after-sales service through a growing network of regional support partners, ensuring efficiency and peace of mind wherever your business operates.
Tailored Solutions for Every Market
We do not believe in one-size-fits-all. From lightweight roofing systems in Europe to high-load steel structures in South America, we customize each machine’s configuration, tooling, and control system based on regional material standards, climate conditions, and production objectives. This ensures maximum output and consistent product quality for every customer.
About us
Global Reliability, Engineered Over 28 Years
Established in 1996, Haixing Tianjin has been at the forefront of cold roll forming technology, delivering high-quality equipment to the global construction industry. Backed by over 28 years of engineering expertise and certified to CE and ISO standards, our machines are trusted across Europe, the Americas, Africa, and other regions for their innovation, efficiency, and long-term performance.
Guided by our philosophy of "Innovation Through Partnership," we work hand-in-hand with our clients to tailor solutions that meet the specific needs of their markets. From custom profile design to on-site installation and multilingual after-sales support, we offer comprehensive services that enable businesses to grow with confidence—powered by technology that meets and exceeds international standards.
FAQ:
Q: Are you a trading company or a factory?
A: We are a factory with a professional and service-conscious production team, only for exporting various types of cold roll forming machines.
Q: Can one machine produce only one type of panel profile?
A: Not completely. Suitable for automatic three-layer galvanized steel trapezoidal corrugated roofing sheet roll forming machines, glazed tiles. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: Generally, automatic three-layer galvanized steel trapezoidal corrugated roofing sheet roll forming machines can be finished in 20 to 45 working days. But if you need the machines urgently, we can save your time.
Q: Is there any quality control when producing the production line?
A: Yes, we have a team responsible for quality control, including raw material placement, roller and other parts processing, roller and shaft surface processing, assembly, testing and packaging.
